Removal [05/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    NOTE:

    Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

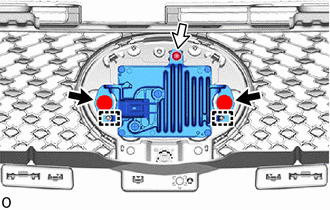

    1. Remove the 2 bolts and screw.
      GTY1241765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Detach the guide and remove the millimeter wave radar sensor assembly.
