On-Vehicle Inspection [04/2013 - ]: Procedure

  1. INSPECT TOE CONTROL LINK SUB-ASSEMBLY
    1. Check for looseness.
      1. Lift up the vehicle.

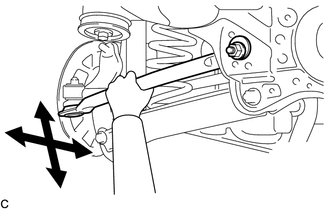

      2. Move the toe control link sub-assembly up and down by hand to check that there is no looseness at the toe control link sub-assembly.
        GTY470197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
