Installation [04/2013 - 09/2020]: Procedure

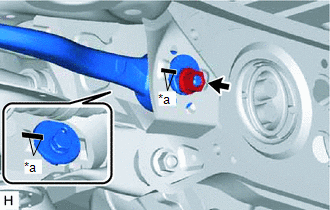

1. Using the toe adjust cam sub-assembly, No. 2 toe adjust plate and nut, temporarily install the toe control link sub-assembly to the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   NOTE:

   • Insert the toe adjust cam sub-assembly from the front of the vehicle.
   • Hold the toe adjust cam sub-assembly while rotating the nut.
   • Align the matchmarks on the toe adjust cam sub-assembly, No. 2 toe adjust plate and rear suspension member sub-assembly.
2. Install the toe control link sub-assembly to the rear axle assembly with a new nut.

   Torque: 70 N.m (714 kgf/cm, 52 ft.lbf)

See step  6

1. Install the toe control link sub-assembly (rear suspension member sub-assembly side) with the nut.

   Torque: 117 N.m (1193 kgf/cm, 86 ft.lbf)

   NOTE:

   Hold the toe adjust cam sub-assembly while rotating the nut.

Torque: 103 N.m (1050 kgf/cm, 76 ft.lbf)

Refer to ADJUSTMENT [04/2013 - 08/2015] , or refer to ADJUSTMENT [08/2015 - 10/2016] , or refer to ADJUSTMENT [10/2016 - 09/2020]
