Components [04/2013 - ]

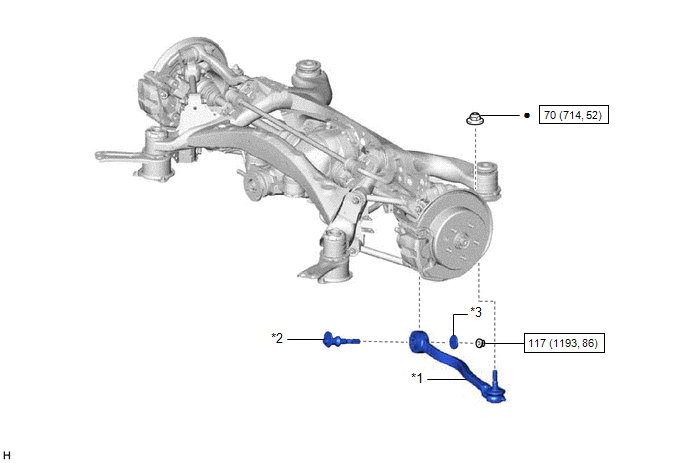

Fig 1: Toe Control Link Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TOE CONTROL LINK SUB-ASSEMBLY	*2	TOE ADJUST CAM SUB-ASSEMBLY
*3	NO. 2 TOE ADJUST PLATE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
