Components [04/2013 - ]

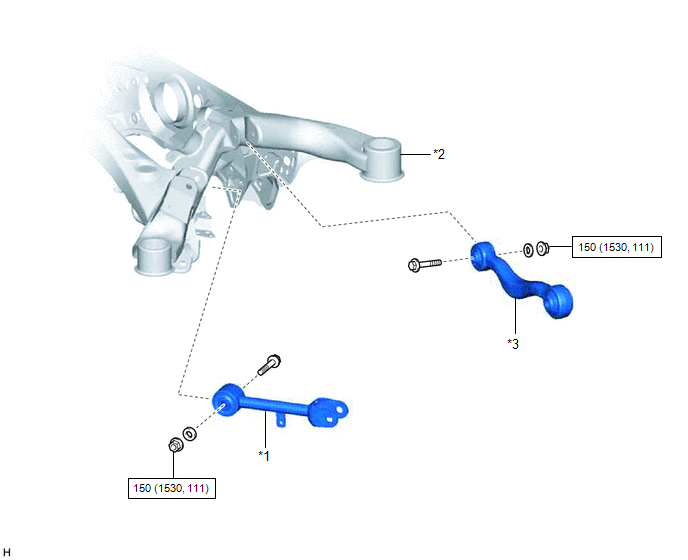

Fig 1: Rear Upper Arm Replacement Components With Torque Specifications
GTY466943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR NO. 1 UPPER CONTROL ARM ASSEMBLY *2 REAR SUSPENSION MEMBER SUB-ASSEMBLY
*3 REAR UPPER CONTROL ARM ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
