Components [10/2016 - 10/2017]
Fig 1: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (1 Of 8)
| *A | for Full Cover Type | *B | for Half Cover Type |
| *1 | FRONT CENTER FLOOR BRACE | *2 | REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH |
| *3 | REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH | *4 | REAR FLOOR SIDE MEMBER COVER LH |
| *5 | REAR FLOOR SIDE MEMBER COVER RH | *6 | REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY |
| *7 | REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

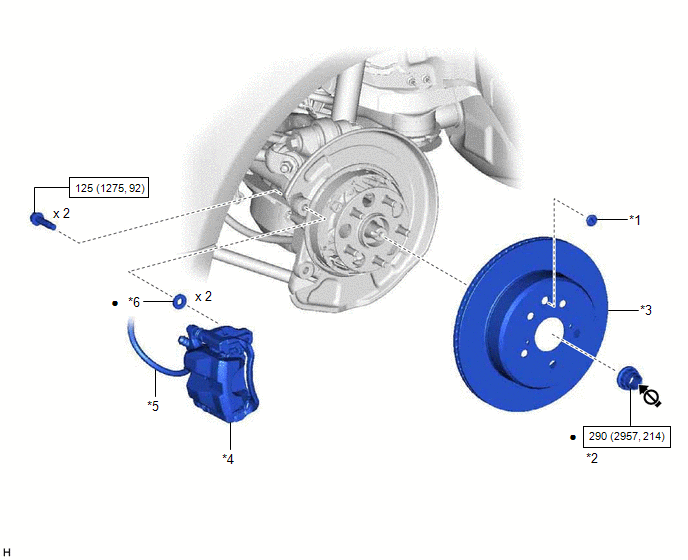

Fig 2: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (2 Of 8)
| *1 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *2 | REAR AXLE SHAFT NUT LH |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY LH |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR NO. 1 DISC BRAKE CALIPER PLATE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | - | - |

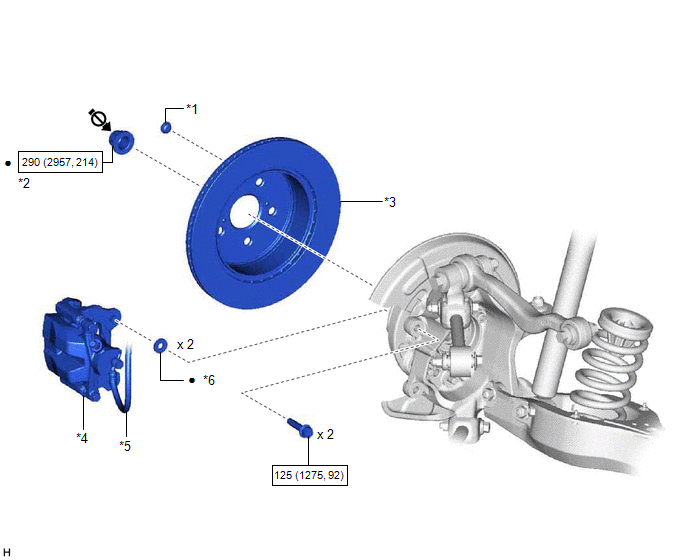

Fig 3: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (3 Of 8)
| *1 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *2 | REAR AXLE SHAFT NUT RH |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY RH |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR NO. 1 DISC BRAKE CALIPER PLATE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | - | - |

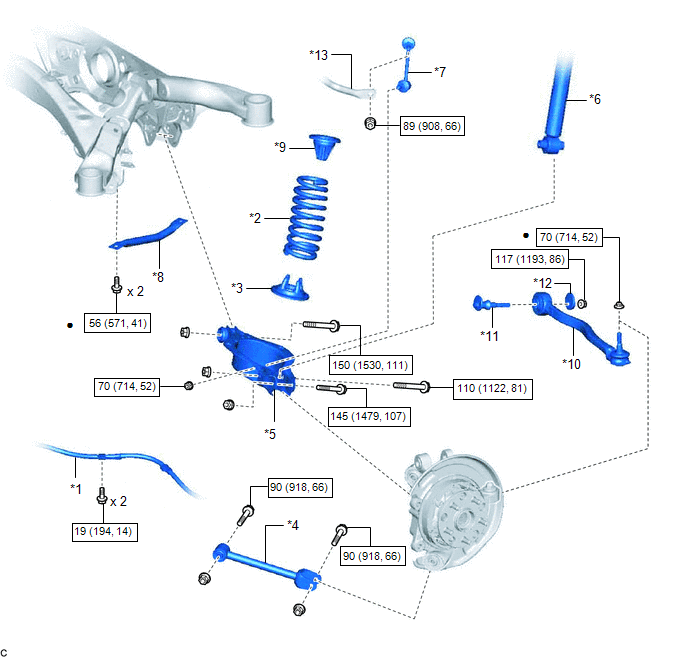

Fig 4: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (4 Of 8)
| *1 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *2 | REAR COIL SPRING LH |
| *3 | REAR LOWER COIL SPRING INSULATOR | *4 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *6 | REAR SHOCK ABSORBER ASSEMBLY LH |
| *7 | REAR STABILIZER LINK ASSEMBLY LH | *8 | REAR SUSPENSION MEMBER BRACE LH |
| *9 | REAR UPPER COIL SPRING INSULATOR | *10 | TOE CONTROL LINK SUB-ASSEMBLY LH |
| *11 | TOE ADJUST CAM SUB-ASSEMBLY | *12 | NO. 2 TOE ADJUST PLATE |
| *13 | REAR STABILIZER BAR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

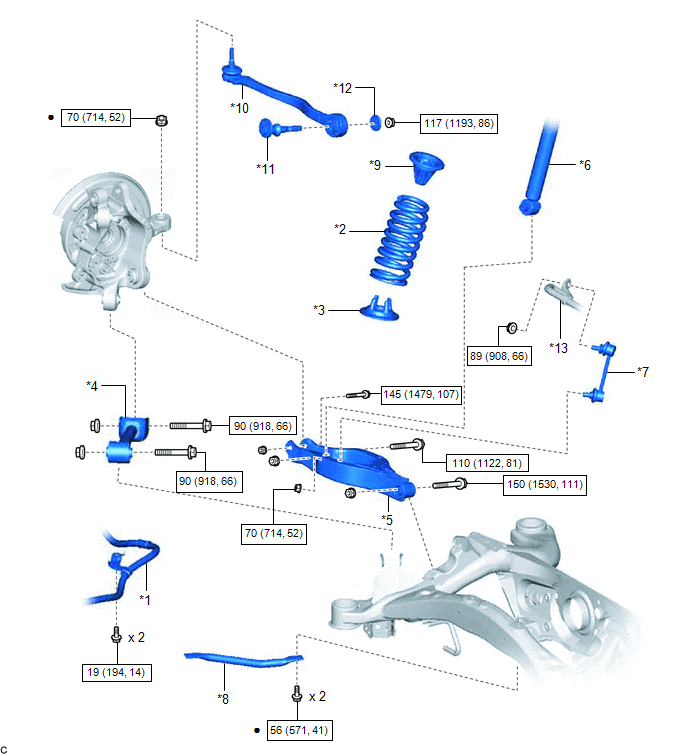

Fig 5: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (5 Of 8)
| *1 | NO. 2 PARKING BRAKE CABLE ASSEMBLY | *2 | REAR COIL SPRING RH |
| *3 | REAR LOWER COIL SPRING INSULATOR | *4 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH | *6 | REAR SHOCK ABSORBER ASSEMBLY RH |
| *7 | REAR STABILIZER LINK ASSEMBLY RH | *8 | REAR SUSPENSION MEMBER BRACE RH |
| *9 | REAR UPPER COIL SPRING INSULATOR | *10 | TOE CONTROL LINK SUB-ASSEMBLY RH |
| *11 | TOE ADJUST CAM SUB-ASSEMBLY | *12 | NO. 2 TOE ADJUST PLATE |
| *13 | REAR STABILIZER BAR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 6: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (6 Of 8)
| *1 | REAR AXLE ASSEMBLY LH | *2 | REAR DRIVE SHAFT ASSEMBLY LH |
| *3 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *4 | REAR SPEED SENSOR LH |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY LH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Do not apply lubricants to the threaded parts |
Fig 7: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (7 Of 8)
| *1 | REAR AXLE ASSEMBLY RH | *2 | REAR DRIVE SHAFT ASSEMBLY RH |
| *3 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *4 | REAR SPEED SENSOR RH |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY RH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Do not apply lubricants to the threaded parts |

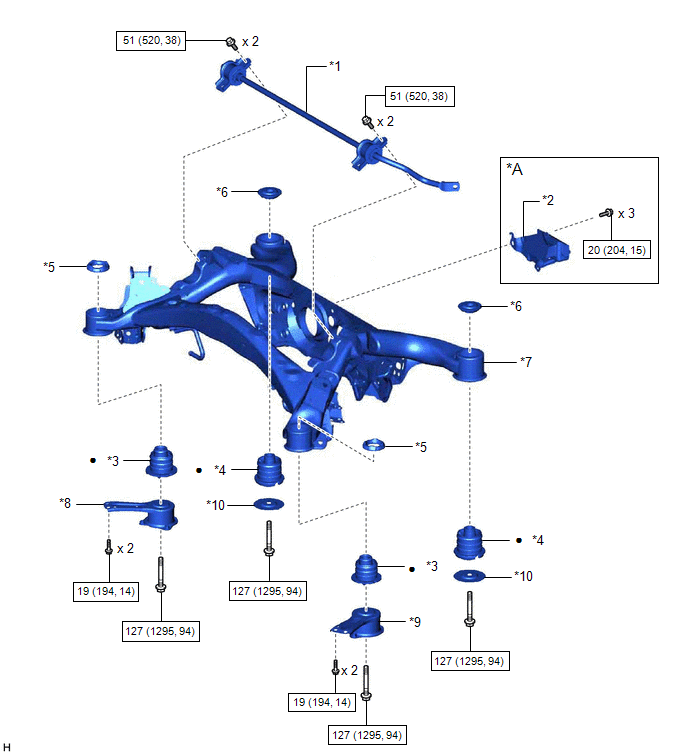

Fig 8: Rear Suspension Member Replacement Components With Torque Specifications [10/2016 - 10/2017] (8 Of 8)
| *A | for 8AR-FTS | - | - |
| *1 | REAR STABILIZER BAR SUB-ASSEMBLY | *2 | REAR SUSPENSION MEMBER DAMPER |
| *3 | REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION | *4 | REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION |
| *5 | REAR SUSPENSION MEMBER REAR LOWER STOPPER | *6 | REAR SUSPENSION MEMBER REAR UPPER STOPPER |
| *7 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *8 | REAR SUSPENSION MEMBER LOWER STOPPER SUB-ASSEMBLY RH |
| *9 | REAR SUSPENSION MEMBER LOWER STOPPER SUB-ASSEMBLY LH | *10 | REAR SUSPENSION MEMBER LOWER STOPPER |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
