Components [04/2013 - 10/2016]

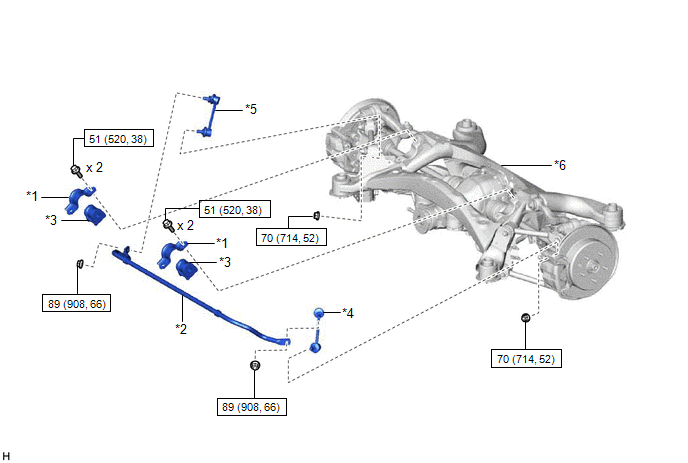

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications [04/2013 - 10/2016]
GTY628072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR NO. 1 STABILIZER BAR BRACKET *2 REAR STABILIZER BAR
*3 REAR STABILIZER BUSHING *4 REAR STABILIZER LINK ASSEMBLY LH
*5 REAR STABILIZER LINK ASSEMBLY RH *6 REAR SUSPENSION MEMBER SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
