Installation [04/2013 - 06/2014]: Procedure

1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

1. Install the rear upper coil spring insulator to the rear coil spring.

1. Set the rear coil spring and rear upper coil spring insulator to the rear No. 2 suspension arm assembly.
   NOTE:

   • Make sure to install the rear coil spring with the identification mark facing downward.
   • Set the rear coil spring so that the identification mark is positioned as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark
   *b	45° or less

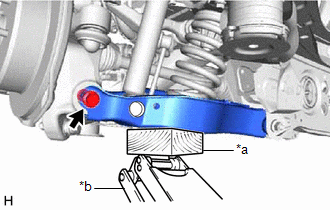

2. Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then temporarily install the rear No. 2 suspension arm assembly to the rear axle assembly with the bolt and nut.
   WARNING:

   Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   HINT:

   Insert the bolt with the threaded end facing the front of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

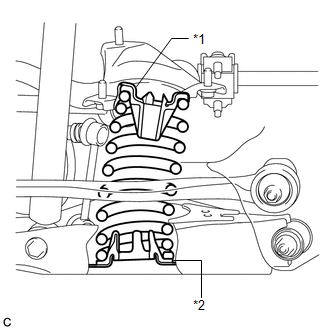

3. Check that the rear upper coil spring insulator and rear lower coil spring insulator are installed as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Upper Coil Spring Insulator
   *2	Rear Lower Coil Spring Insulator

1. Temporarily install the rear shock absorber assembly to the rear No. 2 suspension arm assembly with the bolt and nut.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   Insert the bolt with the threaded end facing the front of the vehicle.

See step  5

1. Temporarily install the rear No. 1 suspension arm assembly to the rear axle assembly with the bolt and nut.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   Insert the bolt with the threaded end facing the front of the vehicle.

See step  5

See step  6

See step  7

See step  12

1. Install the rear No. 1 suspension arm assembly with the bolt.

   Torque: 90 N.m (918 kgf/cm, 66 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

1. Install the rear height control sensor sub-assembly to the rear No. 1 upper control arm assembly with the nut.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

Torque: 103 N.m (1050 kgf/cm, 76 ft.lbf)

Refer to ADJUSTMENT [04/2013 - 08/2015]

Refer to INITIALIZATION [04/2013 - 10/2016]

Refer to ADJUSTMENT [04/2013 - 10/2016]

Refer to ADJUSTMENT [04/2013 - 10/2016]
