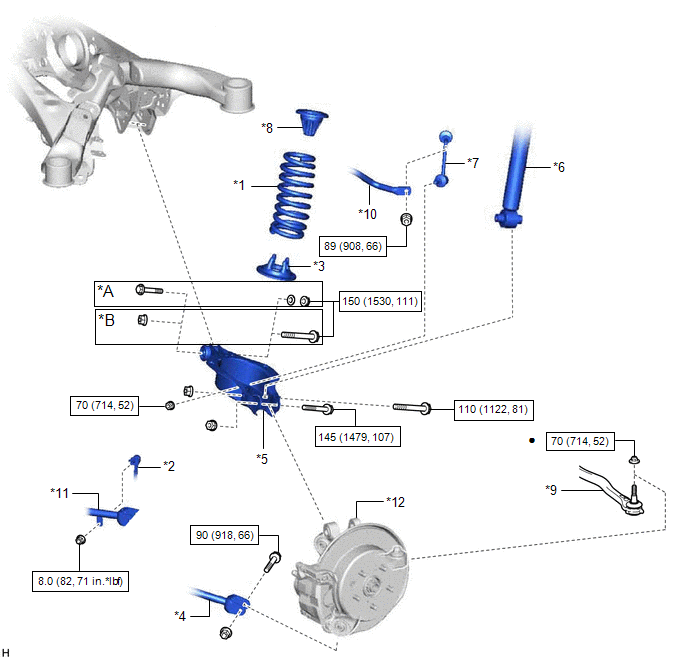

Components [04/2013 - 06/2014]
| *A | for Type A | *B | for Type B |
| *1 | REAR COIL SPRING | *2 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY |
| *3 | REAR LOWER COIL SPRING INSULATOR | *4 | REAR NO. 1 SUSPENSION ARM ASSEMBLY |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *6 | REAR SHOCK ABSORBER ASSEMBLY |
| *7 | REAR STABILIZER LINK ASSEMBLY | *8 | REAR UPPER COIL SPRING INSULATOR |
| *9 | TOE CONTROL LINK SUB-ASSEMBLY | *10 | REAR STABILIZER BAR |
| *11 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *12 | REAR AXLE ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
