Removal [11/2021 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE SUSPENSION TOWER DAMPER

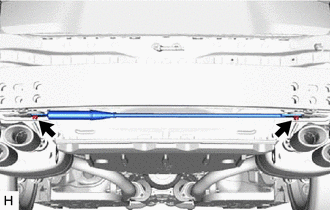

    1. Remove the 2 nuts and the suspension tower damper from the vehicle.
      GTY1083241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not extend or compress the damper.
