Parts Location [04/2013 - 09/2020]: Illustration

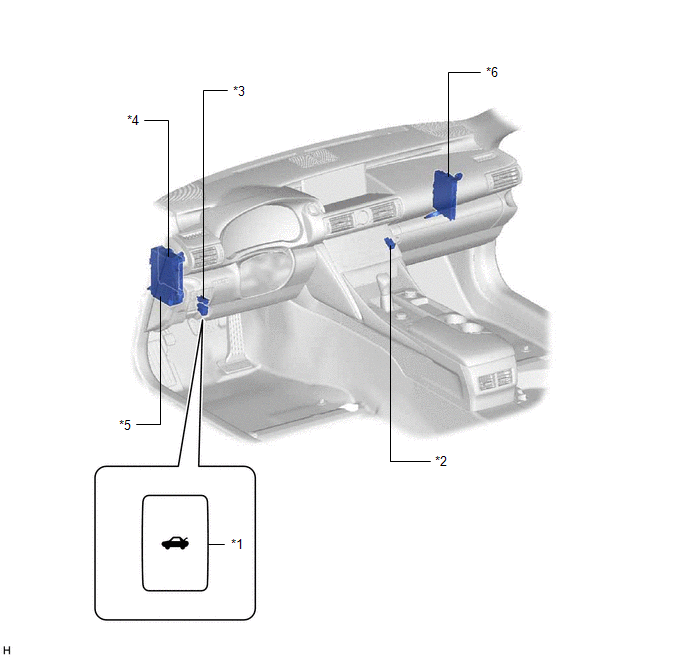

Fig 1: Luggage Compartment Door Opener System Components Location (1 Of 2) [04/2013 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE DOOR OPENING SWITCH ASSEMBLY	*2	LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY
*3	DLC3	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TRUNK OPN RELAY	*6	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

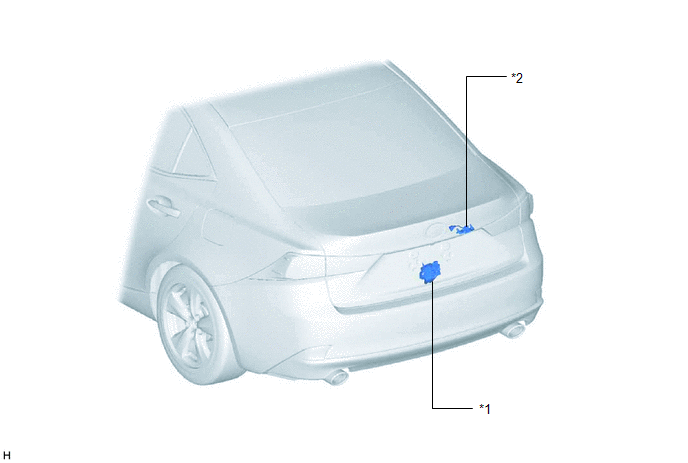

Fig 1: Luggage Compartment Door Opener System Components Location (2 Of 2) [04/2013 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

*2

LUGGAGE ELECTRICAL KEY SWITCH
