Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

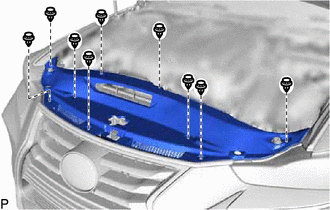

    1. Remove the 9 clips and cool air intake duct seal.
      GTY619962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT BUMPER ASSEMBLY
    1. Apply protective tape around the front bumper assembly as shown in the illustration.
      GTY614086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

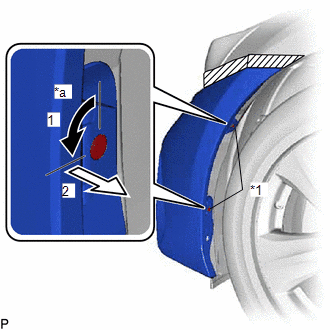

    2. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.
      GTY620782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Pin Hold Clip
      *a 90°

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Remove the clip.

      HINT:

      Use the same procedure for the RH side and LH side.

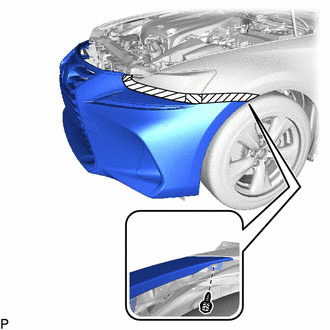

    4. Remove the screw.
      GTY619959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

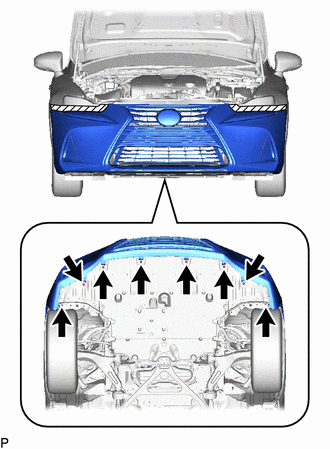

    5. Remove the 8 screws.
      GTY619961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

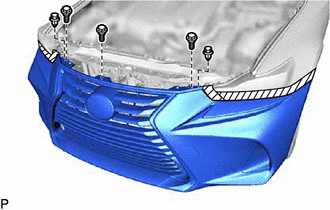

    6. Remove the 3 bolts.
      GTY619957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 clips.
    8. Disconnect the connector.
      GTY618591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

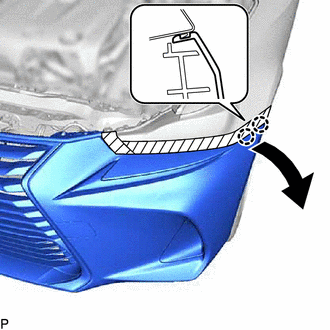

    9. Disengage the 2 claws as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY619952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Pull back the side of the front bumper assembly and disconnect each connector.
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

    11. w/ Headlight Cleaner System:
      GTY665293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

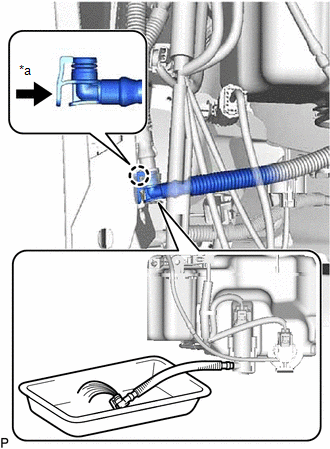

      1. Disengage the claw and disconnect the washer hose from the headlight cleaner hose as shown in the illustration.

        HINT:

        Use a container to collect the washer fluid.

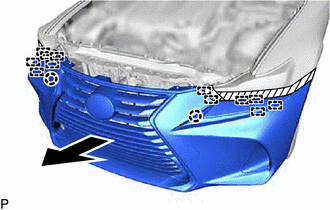

    12. Disengage the 2 claws and 12 guides to remove the front bumper assembly as shown in the illustration.
      GTY623112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
