Removal [09/2020 - ]: Procedure

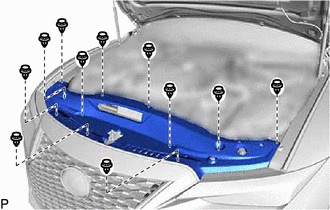

  1. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 11 clips and cool air intake duct seal.
      GTY967005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT BUMPER ASSEMBLY

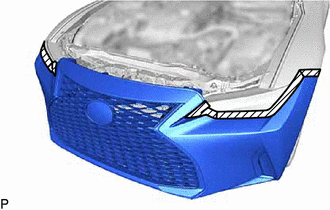

    1. Apply protective tape around the front bumper assembly as shown in the illustration.
      GTY967387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

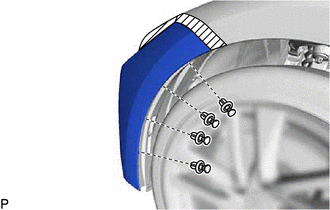

    2. Remove the 4 clips.
      GTY966988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

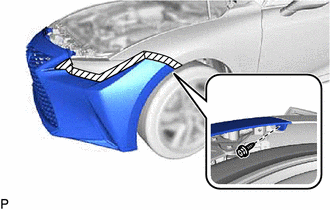

    3. Remove the screw.
      GTY966986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove the grommet.

      HINT:

      Use the same procedure for the RH side and LH side.

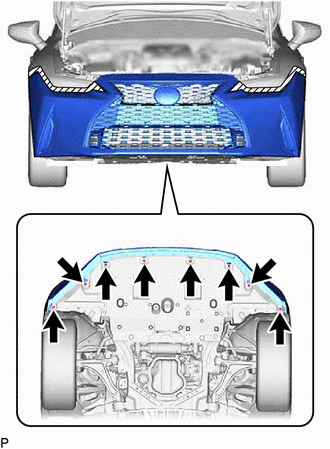

    5. Remove the 8 screws.
      GTY966991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

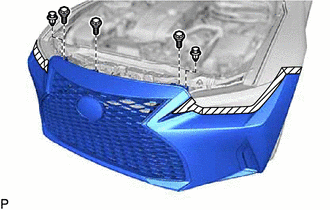

    6. Remove the 3 bolts.
      GTY966504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 clips.
    8. Disconnect the connector.
      GTY971074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

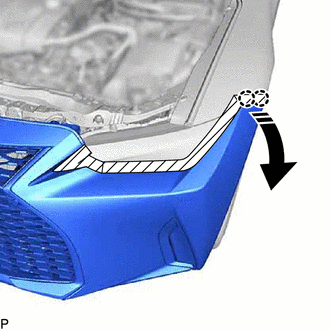

    9. Disengage the 2 claws as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY967541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    10. Pull back the side of the front bumper assembly and disconnect each connector.
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

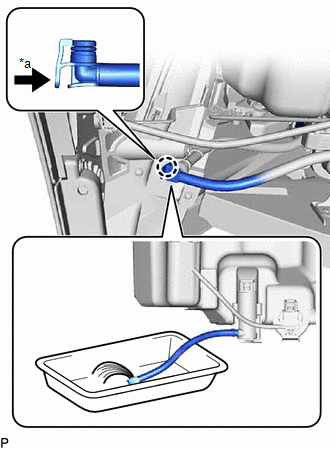

    11. w/ Headlight Cleaner System:
      GTY967367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push
      1. Disengage the claw and disconnect the washer hose from the headlight cleaner hose as shown in the illustration.

        HINT:

        Use a container to collect the washer fluid.

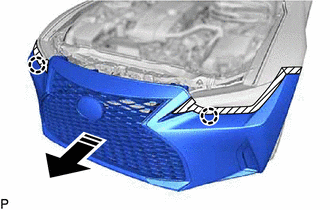

    12. Disengage the 2 claws to remove the front bumper assembly as shown in the illustration.
      GTY967686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
