Home >> Lexus >> 2022 >> IS 350 RWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Exterior Panels / Trim - Service Information (1 Of 2) >> FRONT BUMPER (for Standard) >> Reassembly [10/2016 - 09/2020] >> Procedure

Reassembly [10/2016 - 09/2020]: Procedure

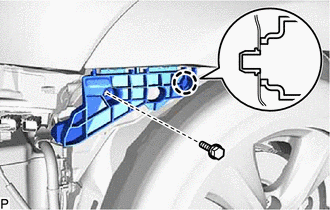

  1. INSTALL FRONT BUMPER SIDE RETAINER LH
    1. Engage the claw.
      GTY673070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front bumper side retainer LH with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  2. INSTALL FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

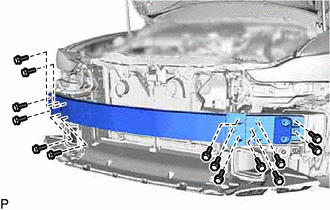

  3. INSTALL FRONT BUMPER REINFORCEMENT
    1. Install the front bumper reinforcement with the 14 bolts.

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

      GTY615134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

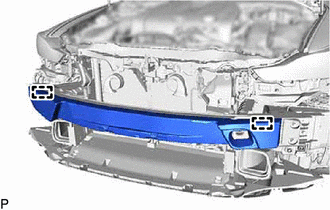

  4. INSTALL FRONT BUMPER ENERGY ABSORBER
    1. Engage the 2 guides to install the front bumper energy absorber.
      GTY615133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 3 RADIATOR GRILLE MOULDING

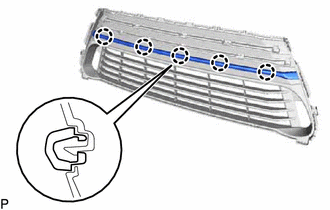

    1. Engage the 5 claws.
      GTY615093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

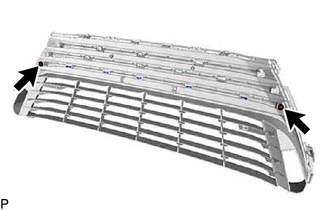

    2. Install the No. 3 radiator grille moulding with the 2 screws.
      GTY615091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

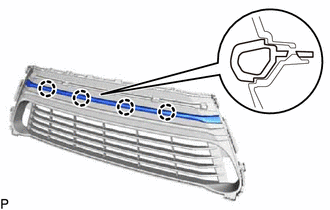

  6. INSTALL NO. 2 RADIATOR GRILLE MOULDING
    1. Engage the 4 claws.
      GTY673057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

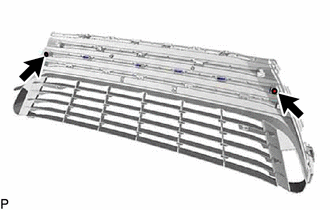

    2. Install the No. 2 radiator grille moulding with the 2 screws.
      GTY615081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

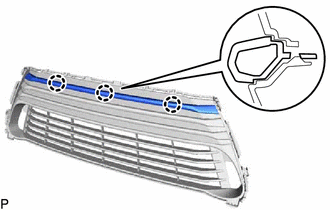

  7. INSTALL NO. 1 RADIATOR GRILLE MOULDING
    1. Engage the 3 claws.
      GTY615079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

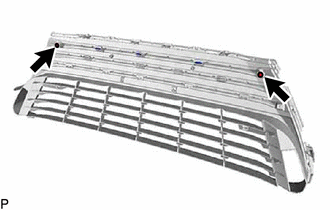

    2. Install the No. 1 radiator grille moulding with the 2 screws.
      GTY673056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

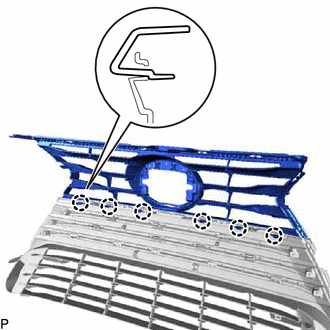

  8. INSTALL INSIDE RADIATOR GRILLE
    1. Engage the 6 claws to install the inside radiator grille.
      GTY615084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

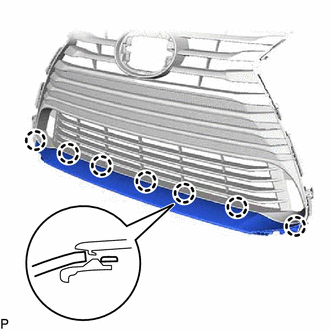

  9. INSTALL LOWER RADIATOR GRILLE MOULDING
    1. Engage the 7 claws to install the lower radiator grille moulding.
      GTY623176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL RADIATOR GRILLE MOULDING

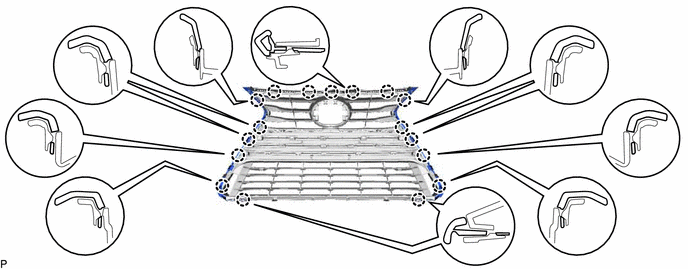

    1. Engage the 17 claws to install the radiator grille moulding.
      GTY623174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL RADIATOR GRILLE BRACKET

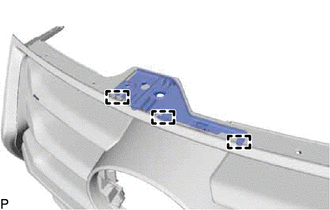

    1. Engage the 3 guides.
      GTY674844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

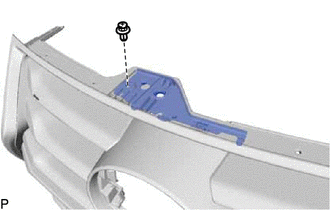

    2. Install the radiator grille bracket with the clip.
      GTY615065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL RADIATOR GRILLE ASSEMBLY

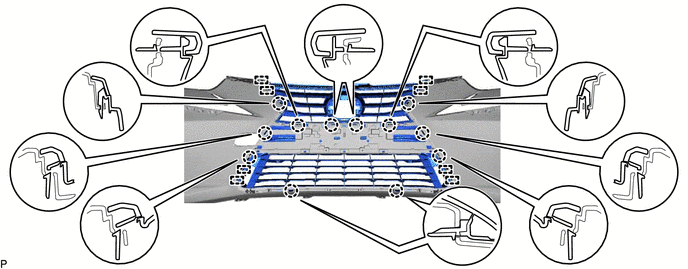

    1. Engage the 8 guides and 12 claws.
      GTY623117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

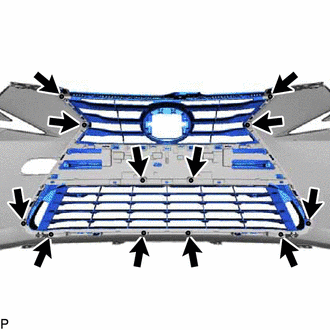

    2. Install the radiator grille assembly with the 12 screws.
      GTY623116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

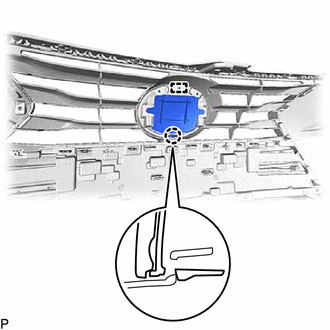

    1. Engage the pin and claw.
      GTY615071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

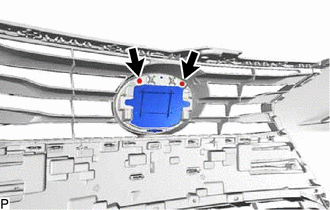

    2. Install the radiator grille (or front panel) emblem with the 2 screws.
      GTY620001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 1 FRONT BUMPER BRACKET LH

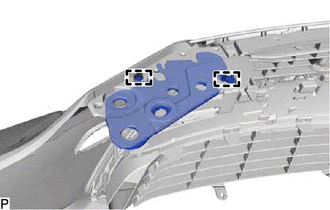

    1. Engage the 2 guides.
      GTY620004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

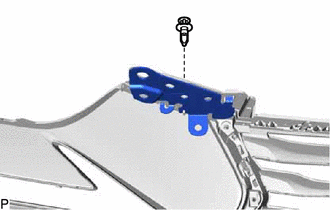

    2. Install the No. 1 front bumper bracket LH with the clip.
      GTY674140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 1 FRONT BUMPER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  16. INSTALL RADIATOR GRILLE PROTECTOR

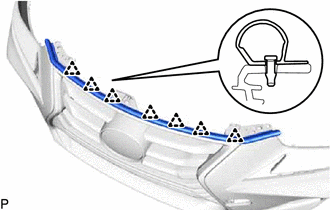

    1. Engage the 7 clips and install the radiator grille protector.
      GTY674136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT ENERGY ABSORBER MOUNTING PLATE

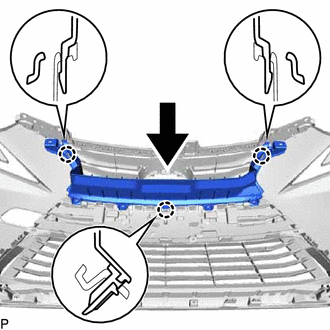

    1. Engage the 3 claws as shown in the illustration.
      GTY619984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

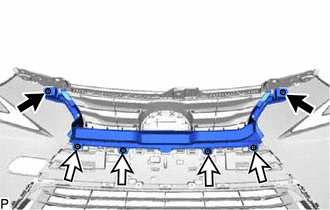

    2. Install the 2 clips.
      GTY659415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip
      Screw
    3. Install the front energy absorber mounting plate with the 4 screws.
  18. INSTALL LOWER FRONT BUMPER COVER

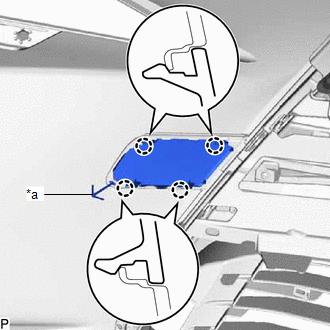

    1. Engage the hook.
      GTY678328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
    2. Engage the 4 claws to install the lower front bumper cover.
  19. INSTALL NO. 2 FRONT BUMPER RETAINER BRACKET

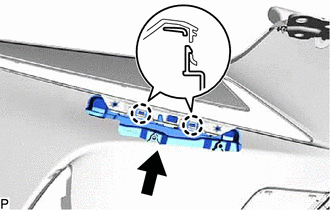

    1. Engage the 2 claws as shown in the illustration.
      GTY619988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

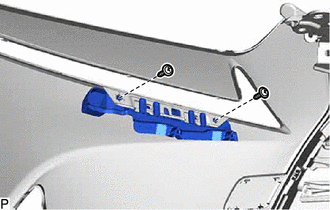

    2. Install the No. 2 front bumper retainer bracket with the 2 screws.
      GTY674138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL NO. 1 FRONT BUMPER RETAINER BRACKET

    HINT:

    Use the same procedure as for the No. 2 front bumper retainer bracket.

  21. INSTALL NO. 1 MOULDING TAPE (for Type A)

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Clean the installation surface of the No. 1 moulding tape.
      1. Remove any remaining double-sided tape from the front bumper cover.
        NOTE:
        • If there is any foreign matter on the front bumper cover when the No. 1 moulding tape is installed, adhesion failure may occur.
        • Do not use a screwdriver or other tool to remove the double-sided tape as the front bumper cover may be damaged, possibly leading to adhesion failure.
      2. Wipe off any tape adhesive residue with cleaner.
    2. Install a new No. 1 moulding tape.
      WARNING:
      • Do not touch the heat light, as doing so may cause in burns.
      • Touching heated parts for a long time may result in burns.

      HINT:

      If the temperature of the No. 1 moulding tape or its installation surface on the front bumper cover is below 15°C (59°F), adhesion failure may occur. Use a heat light to heat the No. 1 moulding tape and its installation surface on the front bumper cover to the recommended temperature (15 to 40°C (59 to 104°F)).

      1. Remove the release paper from a new No. 1 moulding tape.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

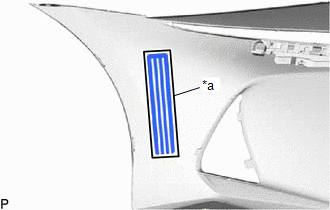

      2. Install the No. 1 moulding tape to the front bumper cover as shown in the illustration.
        GTY672219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Line
        NOTE:

        If the No. 1 moulding tape has been removed, it must be replaced with a new one as it may be deformed or the strength of its adhesive may be deteriorated.

        HINT:

        Make sure not to touch the exposed adhesive of the No. 1 moulding tape or the installation surface on the front bumper cover.

      3. Using a squeegee, evenly press the No. 1 moulding tape to the front bumper cover with a force of 29 N (3 kgf, 6.5 lbf) or more.

        HINT:

        • Make sure that the corners of the No. 1 moulding tape are not damaged or peeling off.
        • After installing the No. 1 moulding tape, leave the front bumper cover in an area with an ambient temperature of 15°C (59°F) or more for 30 minutes or more to allow the adhesive to set.
      4. Remove the protector sheet from the No. 1 moulding tape.
  22. INSTALL NO. 1 MOULDING TAPE (for Type B)

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Clean the installation surface of the No. 1 moulding tape.
      1. Remove any remaining double-sided tape from the front bumper cover.
        NOTE:
        • If there is any foreign matter on the front bumper cover when the No. 1 moulding tape is installed, adhesion failure may occur.
        • Do not use a screwdriver or other tool to remove the double-sided tape as the front bumper cover may be damaged, possibly leading to adhesion failure.
      2. Wipe off any tape adhesive residue with cleaner.
    2. Install a new No. 1 moulding tape.
      WARNING:
      • Do not touch the heat light, as doing so may cause in burns.
      • Touching heated parts for a long time may result in burns.

      HINT:

      If the temperature of the No. 1 moulding tape or its installation surface on the front bumper cover is below 15°C (59°F), adhesion failure may occur. Use a heat light to heat the No. 1 moulding tape and its installation surface on the front bumper cover to the recommended temperature (15 to 40°C (59 to 104°F)).

      1. Remove the release paper from a new No. 1 moulding tape.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

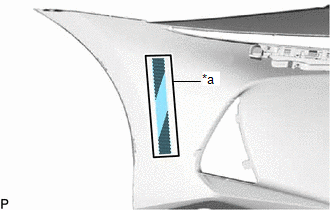

      2. Install the No. 1 moulding tape to the front bumper cover as shown in the illustration.
        GTY785152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Line
        NOTE:

        If the No. 1 moulding tape has been removed, it must be replaced with a new one as it may be deformed or the strength of its adhesive may be deteriorated.

        HINT:

        Make sure not to touch the exposed adhesive of the No. 1 moulding tape or the installation surface on the front bumper cover.

      3. Using a squeegee, evenly press the No. 1 moulding tape to the front bumper cover with a force of 29 N (3 kgf, 6.5 lbf) or more.

        HINT:

        • Make sure that the corners of the No. 1 moulding tape are not damaged or peeling off.
        • After installing the No. 1 moulding tape, leave the front bumper cover in an area with an ambient temperature of 15°C (59°F) or more for 30 minutes or more to allow the adhesive to set.
      4. Remove the protector sheet from the No. 1 moulding tape.

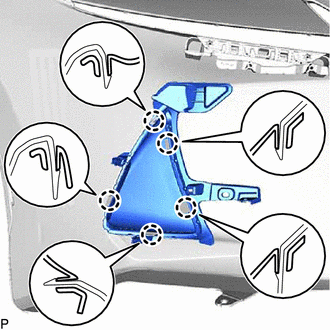

  23. INSTALL LOWER RADIATOR GRILLE LH
    1. Engage the 5 claws to install the lower radiator grille LH.
      GTY619975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL LOWER RADIATOR GRILLE RH

    HINT:

    Use the same procedure as for the LH side.

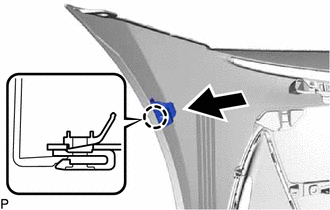

  25. INSTALL FRONT FENDER LINER RETAINER
    1. Engage the claw to install the front fender liner retainer as shown in the illustration.
      GTY643129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure as for the LH side.

  26. INSTALL NO. 2 COOL AIR INTAKE DUCT

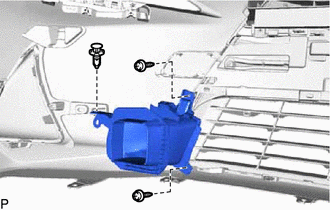

    1. Install the clip.
      GTY619980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 cool air intake duct with the 2 screws.
  27. INSTALL NO. 1 COOL AIR INTAKE DUCT

    HINT:

    Use the same procedure as for the No. 2 cool air intake duct.

  28. INSTALL FRONT BUMPER SIDE BRACKET LH

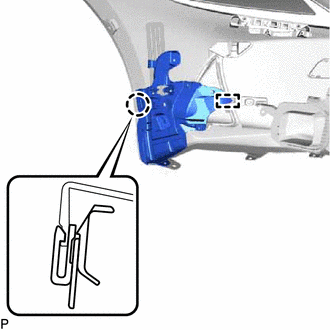

    1. Engage the guide and claw.
      GTY619981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

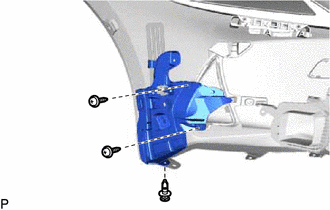

    2. Install the clip.
      GTY623114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front bumper side bracket LH with the 2 screws.
  29. INSTALL FRONT BUMPER SIDE BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  30. INSTALL CLEARANCE LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  31. INSTALL CLEARANCE LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

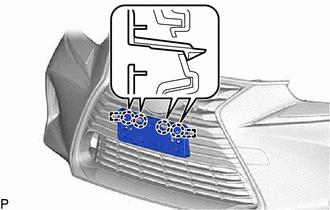

  32. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Engage the 2 guides and 4 claws.
      GTY619973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

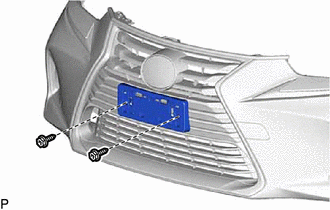

    2. Install the front bumper extension mounting bracket with the 2 screws.
      GTY619972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

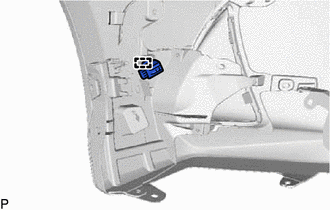

  33. INSTALL CONNECTOR BRACKET (w/o Intuitive Parking Assist System)
    1. Engage the clamp to install the connector bracket.
      GTY674840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)

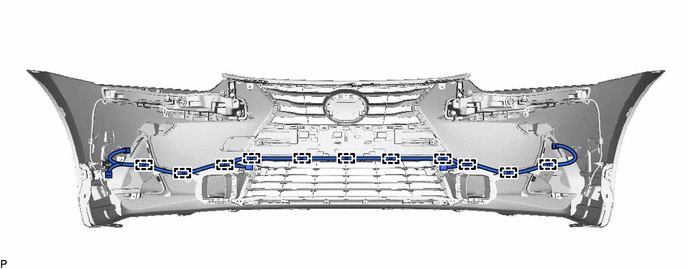

    1. Engage the 11 clamps to install the No. 4 engine room wire.
      GTY615094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  36. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  37. INSTALL NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 1

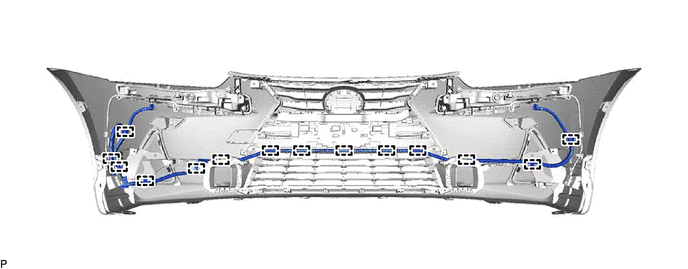

  38. INSTALL HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)
    1. Engage the 14 clamps to install the headlight cleaner hose.
      GTY674135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 1

  40. INSTALL HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)

    HINT:

    Use the same procedure as for the LH side.

  41. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 3

  42. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    HINT:

    Use the same procedure as for the LH side.

  43. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 1
