Reassembly [09/2020 - ]: Procedure

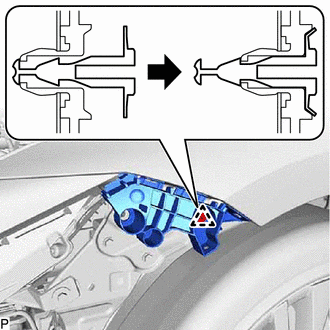

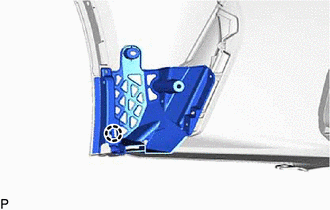

- INSTALL FRONT BUMPER SIDE RETAINER LH
- INSTALL FRONT BUMPER SIDE RETAINER RH
HINT:
Use the same procedure as for the LH side.

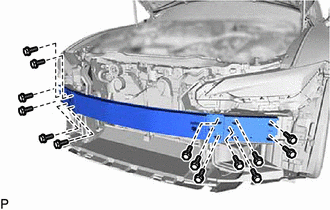

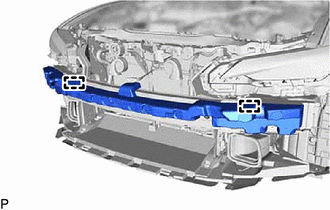

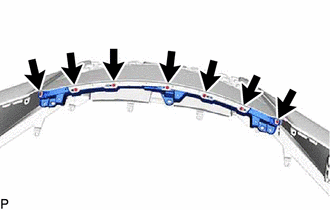

- INSTALL FRONT BUMPER REINFORCEMENT
- INSTALL FRONT BUMPER ENERGY ABSORBER

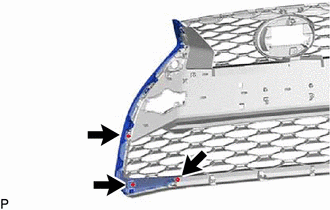

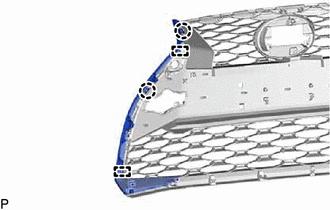

- INSTALL RADIATOR GRILLE SIDE MOULDING LH
- INSTALL RADIATOR GRILLE SIDE MOULDING RH
HINT:
Use the same procedure as for the LH side.
- INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 1

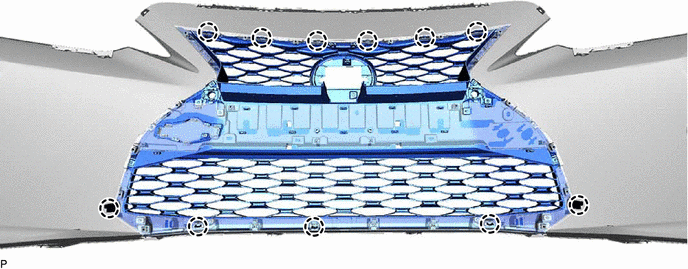

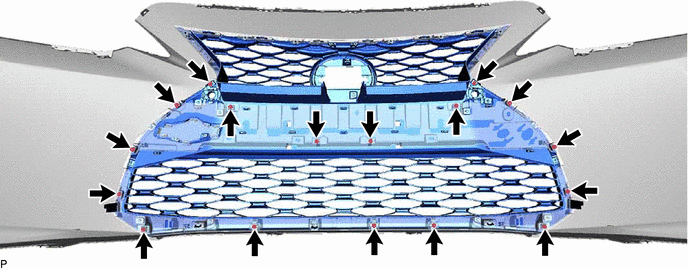

- INSTALL RADIATOR GRILLE SUB-ASSEMBLY

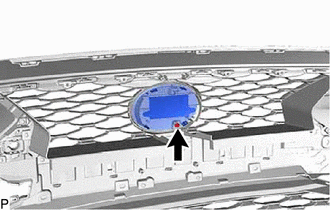

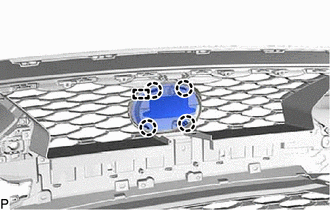

- INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

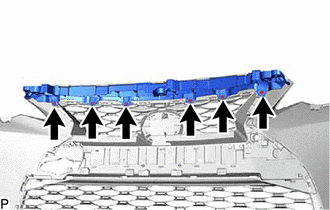

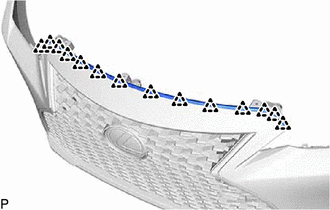

- INSTALL UPPER RADIATOR GRILLE

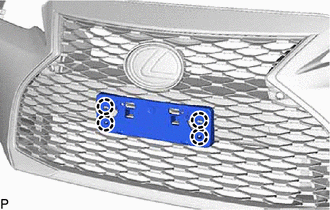

- INSTALL RADIATOR GRILLE PROTECTOR

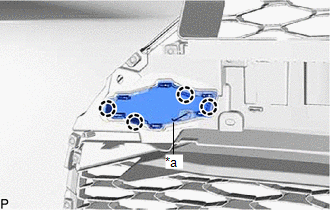

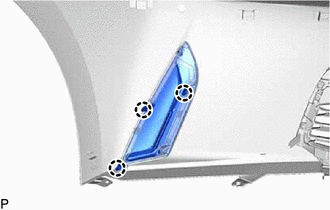

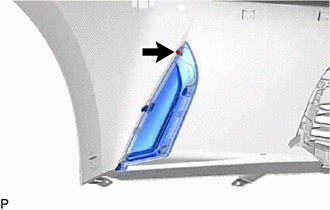

- INSTALL FRONT BUMPER HOLE COVER LH
- INSTALL ULTRASONIC SENSOR CLIP
HINT:
When installing the ultrasonic sensor clip, heat the front bumper cover using a heat light.
Heating Temperature
Item Temperature Front Bumper Cover 20 to 30 °C (68 to 86 °F) WARNING:- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the front bumper cover excessively.
- Clean the front bumper cover surface.
- Using a heat light, heat the front bumper cover surface.
- Remove the double-sided tape from the front bumper cover.
- Wipe off any tape adhesive residue with cleaner.
- Using a brush or felt, apply primer or equivalent to the ultrasonic sensor clip installation area.
Primer - Install a new ultrasonic sensor clip.
- Using a heat light, heat the front bumper cover surface.
- Remove the release paper from the ultrasonic sensor clip.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

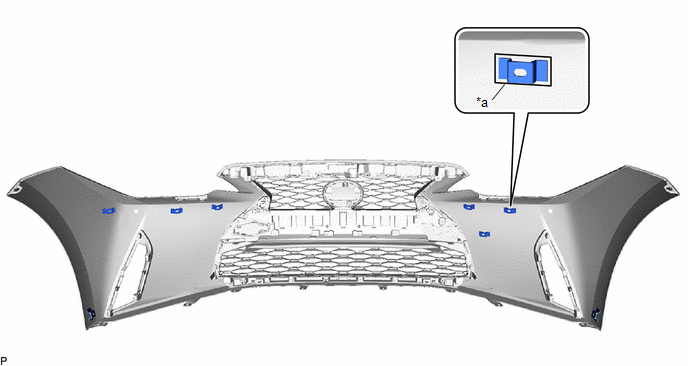

- Install each ultrasonic sensor clip as shown in the illustration.
*a Line - - HINT:
- Install the ultrasonic sensor clip within the line on the front bumper cover.
- Press the ultrasonic sensor clip firmly to install it.
- INSTALL NO. 1 MOULDING TAPE
HINT:
Use the same procedure for the RH side and LH side.
- Clean the installation surface of the No. 1 moulding tape.
- Remove any remaining double-sided tape from the front bumper cover.NOTE:
- If there is any foreign matter on the front bumper cover when the No. 1 moulding tape is installed, adhesion failure may occur.
- Do not use a screwdriver or other tool to remove the double-sided tape as the front bumper cover may be damaged, possibly leading to adhesion failure.
- Wipe off any tape adhesive residue with cleaner.
- Remove any remaining double-sided tape from the front bumper cover.
- Install a new No. 1 moulding tape.WARNING:
- Do not touch the heat light, as doing so may cause in burns.
- Touching heated parts for a long time may result in burns.
HINT:
If the temperature of the No. 1 moulding tape or its installation surface on the front bumper cover is below 15°C (59°F), adhesion failure may occur. Use a heat light to heat the No. 1 moulding tape and its installation surface on the front bumper cover to the recommended temperature (15 to 40°C (59 to 104°F)).
- Remove the release paper from a new No. 1 moulding tape.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

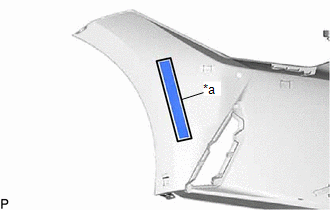

- Install the No. 1 moulding tape to the front bumper cover as shown in the illustration.

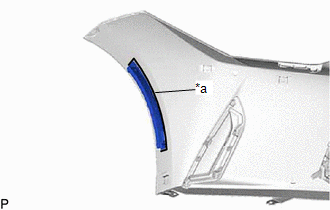

*a Line NOTE:If the No. 1 moulding tape has been removed, it must be replaced with a new one as it may be deformed or the strength of its adhesive may be deteriorated.
HINT:
Make sure not to touch the exposed adhesive of the No. 1 moulding tape or the installation surface on the front bumper cover.
- Using a squeegee, evenly press the No. 1 moulding tape to the front bumper cover with a force of 29 N (3 kgf, 6.5 lbf) or more.
HINT:
- Make sure that the corners of the No. 1 moulding tape are not damaged or peeling off.
- After installing the No. 1 moulding tape, leave the front bumper cover in an area with an ambient temperature of 15°C (59°F) or more for 30 minutes or more to allow the adhesive to set.
- Remove the protector sheet from the No. 1 moulding tape.
- Clean the installation surface of the No. 1 moulding tape.
- INSTALL LOWER RADIATOR GRILLE LH
- INSTALL LOWER RADIATOR GRILLE RH
HINT:
Use the same procedure as for the LH side.
- INSTALL FRONT BUMPER REINFORCEMENT EXTENSION LH
HINT:
When installing the front bumper reinforcement extension LH, heat the front bumper cover using a heat light.
HEATING TEMPERATUREItem Temperature Front Bumper Cover 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the front bumper cover excessively.
- Clean the front bumper cover surface.
- Using a heat light, heat the front bumper cover surface.
- Remove any remaining double-sided tape from the front bumper cover.
- Wipe off any tape adhesive residue with cleaner.
- Using a brush or felt, apply primer or equivalent to the front bumper reinforcement extension LH installation area.NOTE:
- Use a clean brush or felt.
- Do not touch the front bumper cover until the primer has dried.
- Remove the release paper from a new front bumper reinforcement extension LH.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
- Install the front bumper reinforcement extension LH as shown in the illustration.
*a Line HINT:
Press the front bumper reinforcement extension LH firmly to install it.
- INSTALL FRONT BUMPER REINFORCEMENT EXTENSION RH
HINT:
Use the same procedure as for the LH side.

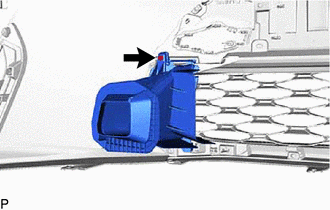

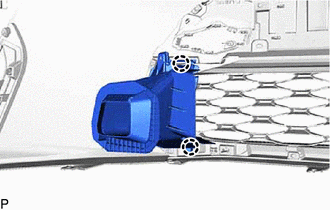

- INSTALL NO. 2 COOL AIR INTAKE DUCT
- INSTALL NO. 1 COOL AIR INTAKE DUCT
HINT:
Use the same procedure as for the No. 2 cool air intake duct.

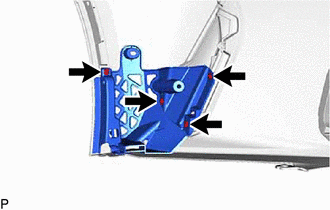

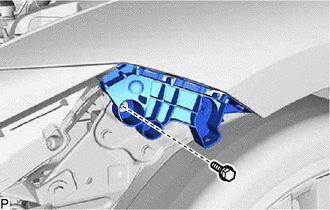

- INSTALL FRONT BUMPER SIDE BRACKET LH
- INSTALL FRONT BUMPER SIDE BRACKET RH
HINT:
Use the same procedure as for the LH side.

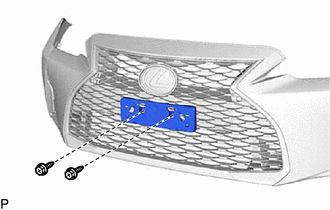

- INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET

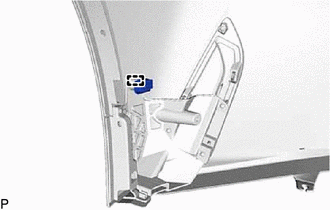

- INSTALL CONNECTOR BRACKET (w/o Parking Support Brake System)

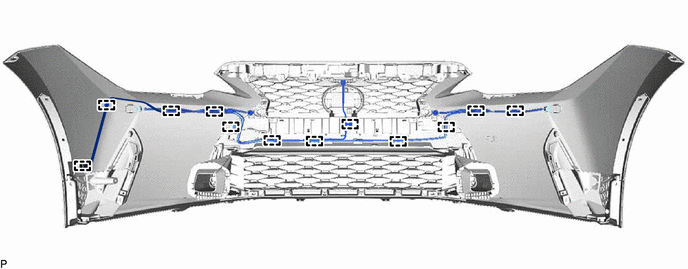

- INSTALL NO. 4 ENGINE ROOM WIRE (w/ Parking Support Brake System)
- INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
Refer to PROCEDURE - Step 1
- INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 10
- INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 11
- INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 12

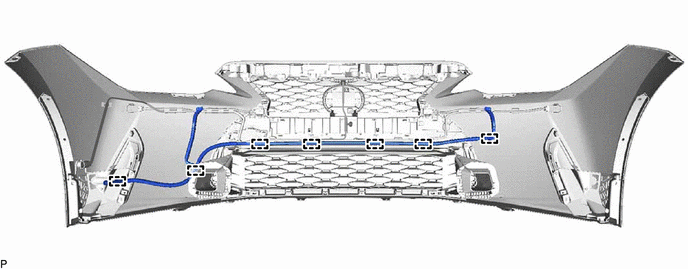

- INSTALL HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)
- INSTALL NO. 2 WASHER BRACKET (w/ Headlight Cleaner System)
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 WASHER BRACKET (w/ Headlight Cleaner System)
HINT:
Use the same procedure as for the No. 2 washer bracket.
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)
Refer to PROCEDURE - Step 3
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)
HINT:
Use the same procedure as for the LH side.
- INSTALL HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)
Refer to PROCEDURE - Step 1
- INSTALL HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)
HINT:
Use the same procedure as for the LH side.
- INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to PROCEDURE - Step 1
