Components [09/2020 - 11/2021]

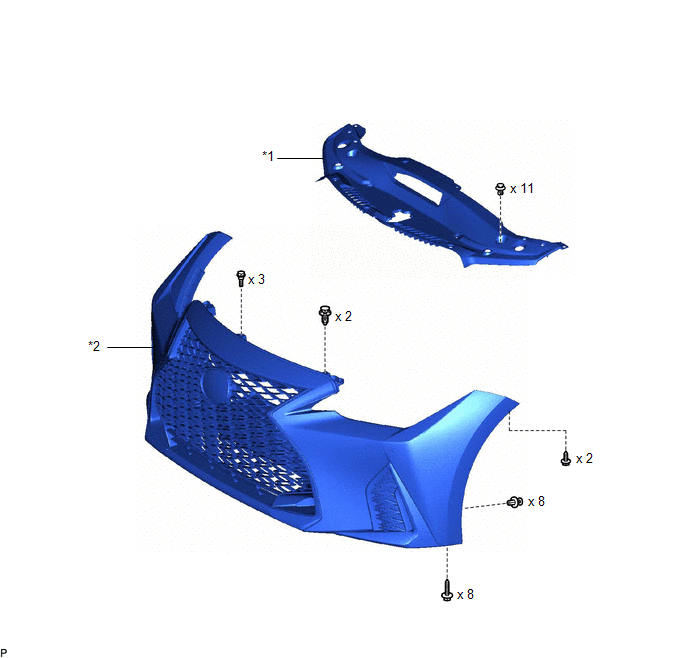

| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT BUMPER ASSEMBLY |

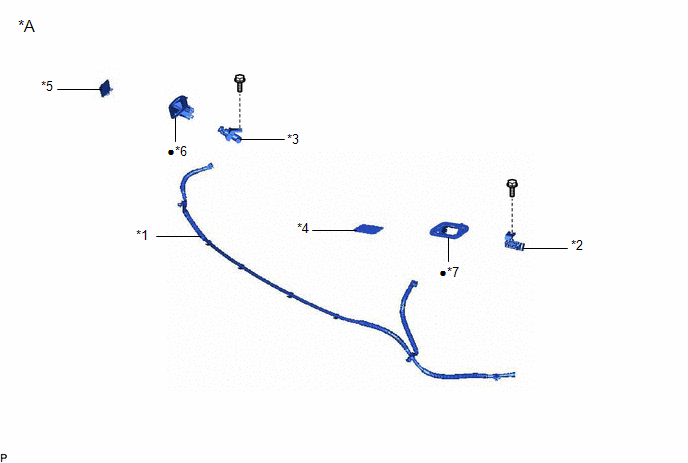

| *A | w/ Headlight Cleaner System | - | - |
| *1 | HEADLIGHT CLEANER HOSE | *2 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH |
| *3 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH | *4 | HEADLIGHT WASHER COVER LH |
| *5 | HEADLIGHT WASHER COVER RH | *6 | NO. 1 WASHER BRACKET |
| *7 | NO. 2 WASHER BRACKET | - | - |
| • | Non-reusable part | - | - |

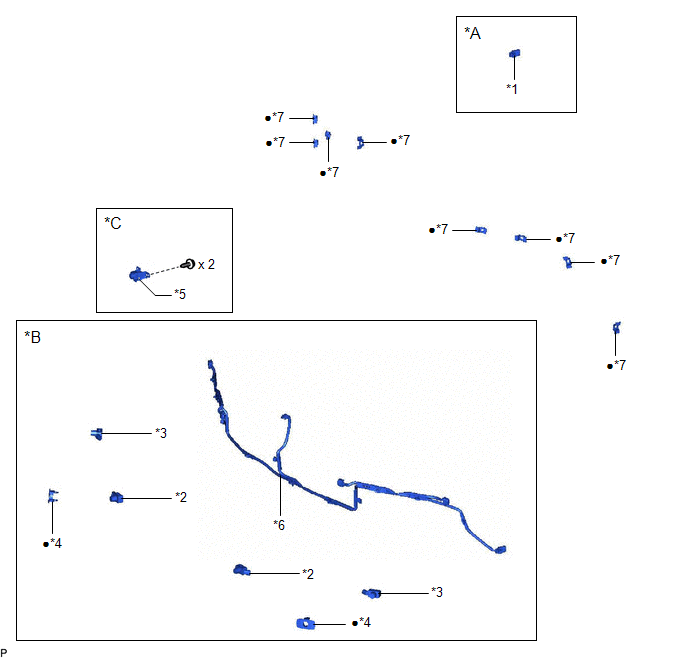

| *A | w/o Parking Support Brake System | *B | w/ Parking Support Brake System |
| *C | w/ Parking Support Brake System | - | - |
| *1 | CONNECTOR BRACKET | *2 | FRONT CENTER ULTRASONIC SENSOR |
| *3 | FRONT CORNER ULTRASONIC SENSOR | *4 | FRONT CORNER ULTRASONIC SENSOR RETAINER |
| *5 | FRONT TELEVISION CAMERA ASSEMBLY | *6 | NO. 4 ENGINE ROOM WIRE |
| *7 | ULTRASONIC SENSOR CLIP | - | - |
| • | Non-reusable part | - | - |

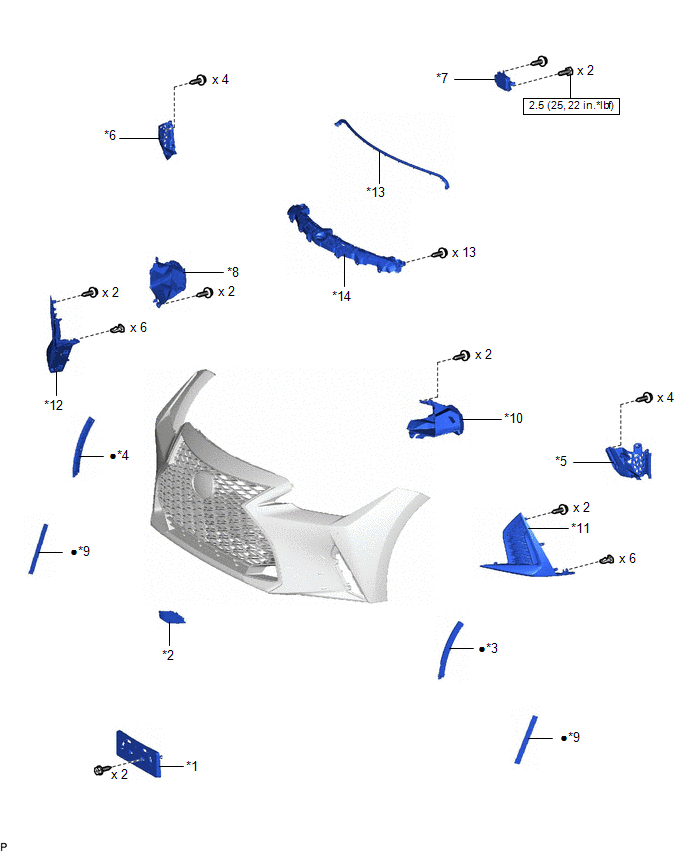

Fig 4: Front Bumper (For Sport Package) Replacement Components With Torque Specifications [09/2020 - 11/2021] (4 Of 6)

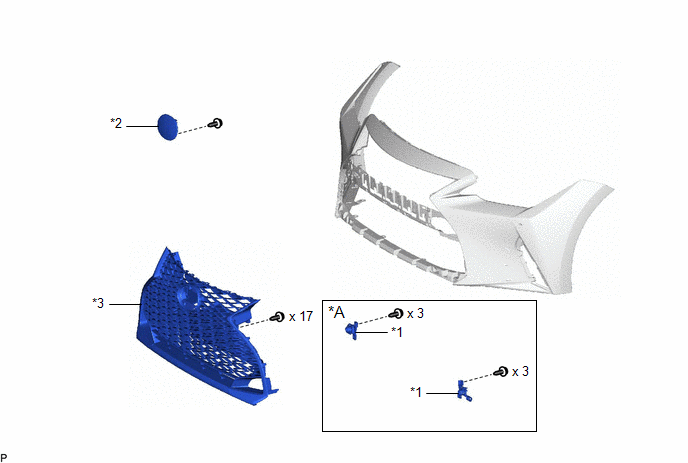

| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER REINFORCEMENT EXTENSION LH | *4 | FRONT BUMPER REINFORCEMENT EXTENSION RH |
| *5 | FRONT BUMPER SIDE BRACKET LH | *6 | FRONT BUMPER SIDE BRACKET RH |
| *7 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *8 | NO. 1 COOL AIR INTAKE DUCT |
| *9 | NO. 1 MOULDING TAPE | *10 | NO. 2 COOL AIR INTAKE DUCT |
| *11 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH | *12 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH |
| *13 | RADIATOR GRILLE PROTECTOR | *14 | UPPER RADIATOR GRILLE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
| *A | w/ Parking Support Brake System | - | - |
| *1 | FRONT CENTER ULTRASONIC SENSOR RETAINER | *2 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM |
| *3 | RADIATOR GRILLE SUB-ASSEMBLY | - | - |
Fig 6: Front Bumper (For Sport Package) Replacement Components With Torque Specifications [09/2020 - 11/2021] (6 Of 6)
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT |
| *3 | FRONT BUMPER SIDE RETAINER LH | *4 | FRONT BUMPER SIDE RETAINER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
