Adjustment [09/2020 - ]: Procedure

INSPECT REAR DOOR

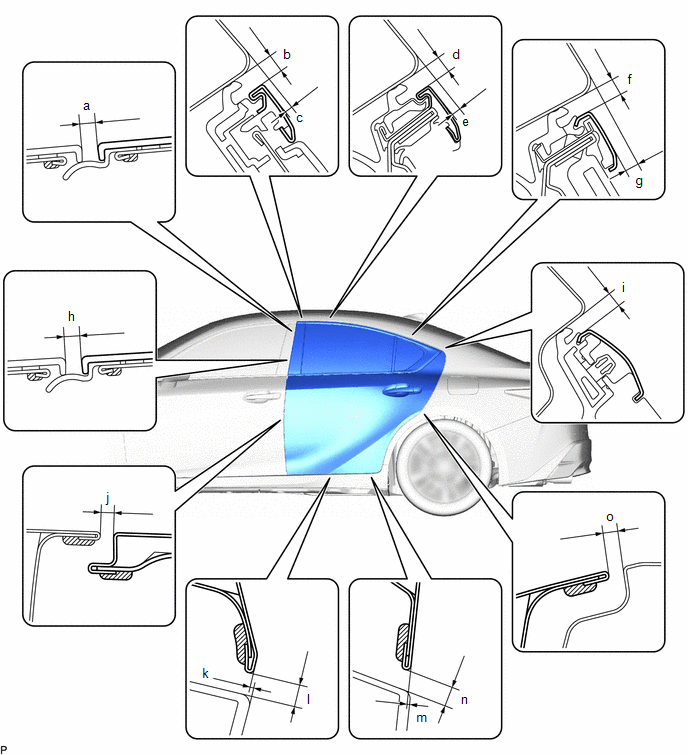

Check that the clearance measurements of areas a through o are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	2.2 to 6.2 mm (0.0866 to 0.244 in.)	b	3.45 to 6.45 mm (0.136 to 0.254 in.)
c	0.65 to 3.65 mm (0.0256 to 0.144 in.)	d	3.35 to 6.35 mm (0.132 to 0.25 in.)
e	1.05 to 4.05 mm (0.0413 to 0.159 in.)	f	3.35 to 6.35 mm (0.132 to 0.25 in.)
g	2.45 to 5.45 mm (0.0965 to 0.215 in.)	h	2.2 to 6.2 mm (0.0866 to 0.244 in.)
i	3.35 to 6.35 mm (0.132 to 0.25 in.)	j	3.8 mm (0.15 in.)
k	-1.3 to 2.7 mm (-0.0512 to 0.106 in.)	l	3.0 to 7.0 mm (0.118 to 0.276 in.)
m	-1.3 to 2.7 mm (-0.0512 to 0.106 in.)	n	3.0 to 7.0 mm (0.118 to 0.276 in.)
o	3.5 mm (0.138 in.)	-	-

ADJUST REAR DOOR

NOTE:

Make sure to turn the engine switch off when adjusting door lock strikers.

Using SST, loosen the hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the hinge bolts on the vehicle body after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
Loosen the hinge bolts on the door and adjust the door position.
Tighten the hinge bolts on the door after adjustment.
Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)

Disengage the 4 claws and remove the rear door lock striker cover.

Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

Engage the 4 claws to install the rear door lock striker cover.
