Adjustment [04/2013 - 09/2020]: Procedure

INSPECT REAR DOOR

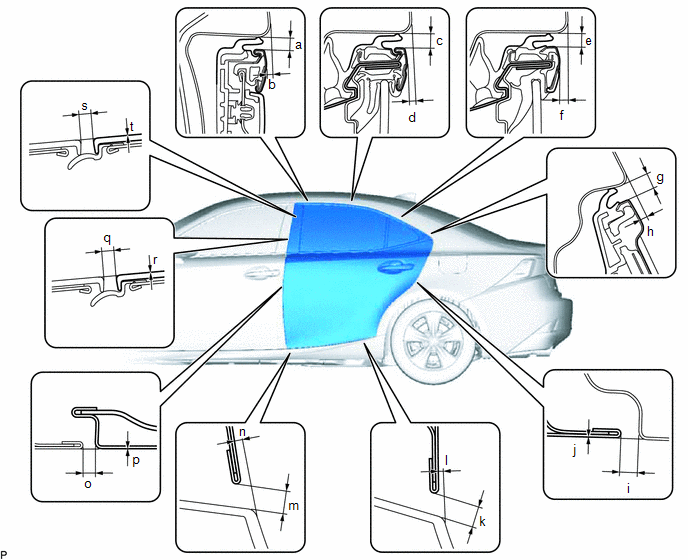

Check that the clearance measurements of areas a through t are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	3.45 to 6.45 mm (0.136 to 0.254 in.)	b	0.65 to 3.65 mm (0.0256 to 0.144 in.)
c	3.45 to 6.45 mm (0.136 to 0.254 in.)	d	0.85 to 3.85 mm (0.0335 to 0.152 in.)
e	3.35 to 6.35 mm (0.132 to 0.250 in.)	f	1.85 to 4.85 mm (0.0728 to 0.191 in.)
g	3.35 to 6.35 mm (0.132 to 0.250 in.)	h	1.45 to 4.45 mm (0.0571 to 0.175 in.)
i	2.3 to 5.3 mm (0.0906 to 0.209 in.)	j	-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
k	3.15 to 7.15 mm (0.124 to 0.281 in.)	l	-0.85 to 3.15 mm (-0.0335 to 0.124 in.)
m	3.15 to 7.15 mm (0.124 to 0.281 in.)	n	0.15 to 4.15 mm (0.00591 to 0.163 in.)
o	2.6 to 5.0 mm (0.102 to 0.197 in.)	p	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
q	2.5 to 6.5 mm (0.0984 to 0.256 in.)	r	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)
s	2.5 to 6.5 mm (0.0984 to 0.256 in.)	t	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)

ADJUST REAR DOOR

NOTE:

Make sure to turn the engine switch off when adjusting door lock strikers.

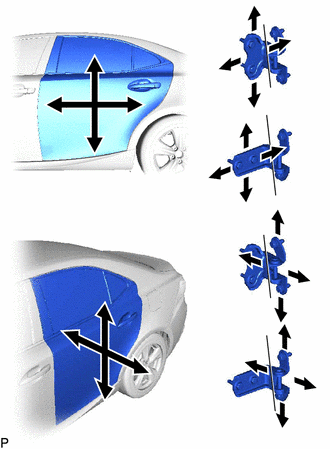

Using SST, loosen the hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the hinge bolts on the vehicle body after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
Loosen the hinge bolts on the door and adjust the door position.
Tighten the hinge bolts on the door after adjustment.
Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)

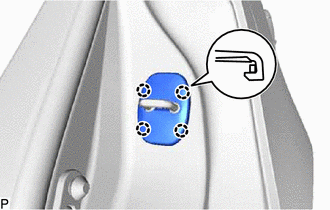

Disengage the 4 claws and remove the rear door lock striker cover.

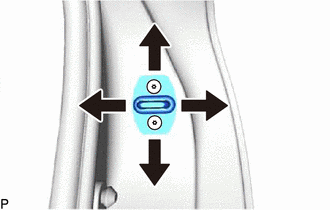

Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

Engage the 4 claws to install the rear door lock striker cover.
