Reassembly [04/2013 - 10/2017]: Procedure

  1. INSTALL LICENSE PLATE LIGHT ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1

  2. INSTALL LICENSE PLATE LIGHT ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL REAR TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor System)

    Refer to PROCEDURE - Step 1

  4. INSTALL LUGGAGE ELECTRICAL KEY SWITCH

    See step  1

  5. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to INSTALLATION [04/2013 - 09/2020]

  6. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
    1. Install the door unlock switch sub-assembly with the c-ring.
      GTY462822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

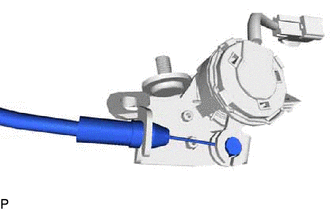

    2. Connect the luggage compartment door lock assembly.
      GTY470527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

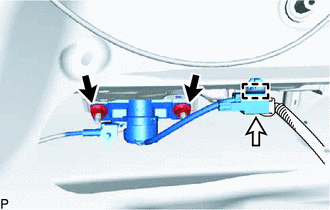

    3. Install the luggage compartment door lock cylinder assembly with the 2 nuts.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

      GTY468613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the clamp.
    5. Connect the connector.
  8. INSTALL LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR

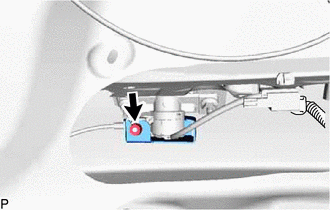

    1. Install the luggage compartment key cylinder protector with the nut.
      GTY465311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL LUGGAGE COMPARTMENT DOOR CUSHION

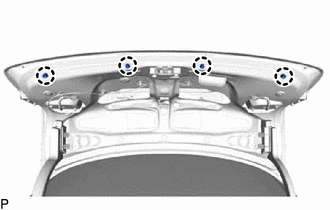

    1. Engage the 4 claws to install 4 new luggage compartment door cushions.
      GTY470524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

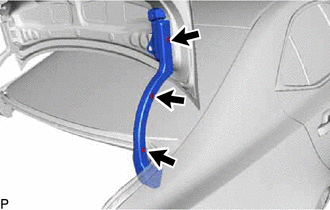

    1. Install the luggage compartment door hinge cover RH with the 3 clips.
      GTY470528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH

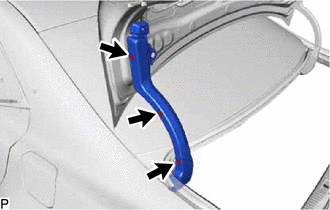

    1. Install the luggage compartment door hinge cover LH with the 3 clips.
      GTY465309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LUGGAGE COMPARTMENT DOOR COVER

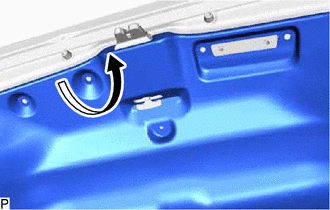

    1. Install the luggage compartment door cover as shown in the illustration.
      GTY459612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

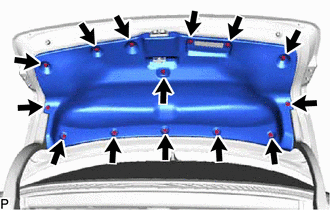

    2. Install the 14 clips.
      GTY469288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL BACK DOOR ASSIST GRIP

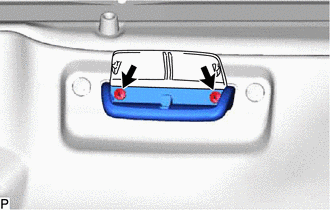

    1. Install the back door assist grip with the 2 screws.
      GTY464343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

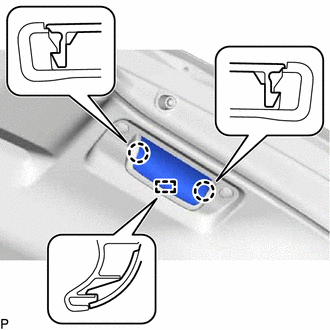

    2. Engage the guide and 2 claws, and close the cover.
      GTY470311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
