Inspection [04/2013 - ]: Procedure
- INSPECT DOOR UNLOCK SWITCH SUB-ASSEMBLY
- Measure the resistance according to the value(s) in the table below.

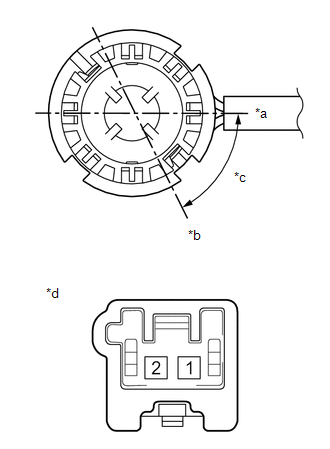

*a Luggage compartment door lock key cylinder in neutral position *b Luggage compartment door lock key cylinder in unlock position *c 60° *d Component without harness connected
(Door Unlock Switch Sub-assembly)Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 Luggage compartment door lock key cylinder in neutral position 10 kΩ or higher Luggage compartment door lock key cylinder in unlock position Below 1 Ω
- Measure the resistance according to the value(s) in the table below.
