Adjustment [09/2020 - ]: Procedure

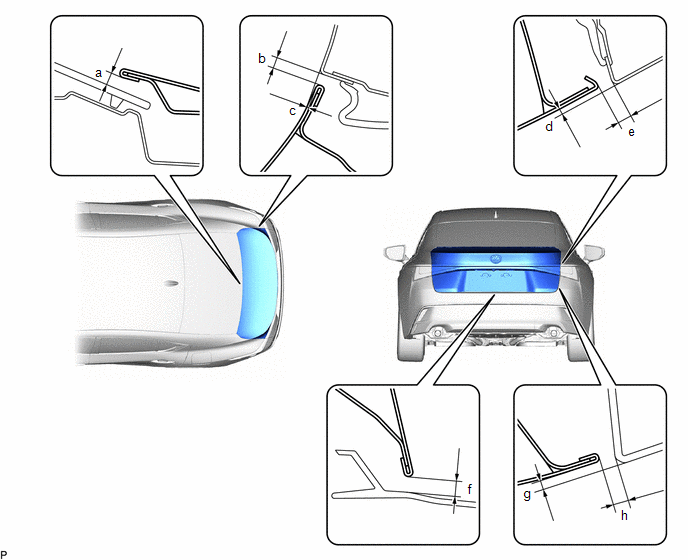

1. Check that the clearance measurements of areas a through h are within each standard range.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD CLEARANCE



   Area	Measurement	Area	Measurement
   a	6.45 mm (0.254 in.)	b	1.7 to 4.7 mm (0.0669 to 0.185 in.)
   c	-0.3 to 2.7 mm (-0.0118 to 0.106 in.)	d	0.2 to 3.2 mm (0.00787 to 0.126 in.)
   e	2.4 to 5.7 mm (0.0945 to 0.224 in.)	f	3.85 to 7.85 mm (0.152 to 0.309 in.)
   g	1.1 to 5.1 mm (0.0433 to 0.201 in.)	h	2.75 to 6.75 mm (0.108 to 0.266 in.)

See step  2

See step  3

See step  4

See step  4

See step  5

See step  6

See step  7

See step  8

See step  9

See step  10

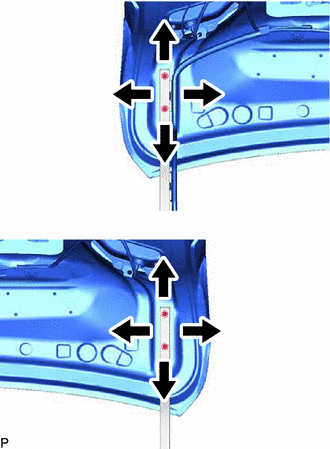

1. Loosen the door side hinge bolts to adjust the door horizontally and vertically.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

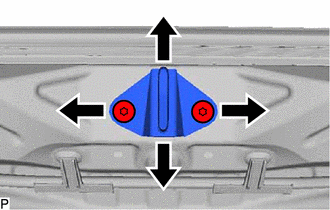

2. Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a brass bar and a hammer, hit the striker to adjust its position.
4. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

   Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
