Adjustment [04/2013 - 09/2020]: Procedure

  1. INSPECT LUGGAGE COMPARTMENT DOOR

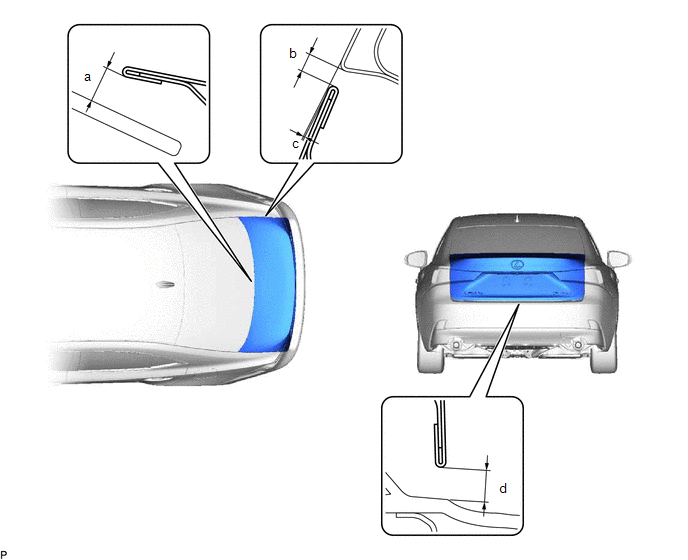

    1. Check that the clearance measurements of areas a through d are within each standard range.
      GTY470215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      a 7.9 mm (0.311 in.) b 2.3 to 5.3 mm (0.0906 to 0.209 in.)
      c -1.4 to 1.6 mm (-0.0551 to 0.0630 in.) d 4.0 to 8.0 mm (0.157 to 0.315 in.)
  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    See step  2 [04/2013 - 10/2017], or see step  2 [10/2017 - 09/2020]

  3. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH

    See step  3 [04/2013 - 10/2017], or see step  3 [10/2017 - 09/2020]

  4. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    See step  4 [04/2013 - 10/2017], or see step  4 [10/2017 - 09/2020]

  5. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    See step  4 [04/2013 - 08/2015], or see step  4 [08/2015 - 09/2020]

  6. REMOVE SPARE WHEEL COVER TRAY LH

    See step  5 [04/2013 - 08/2015], or see step  5 [08/2015 - 09/2020]

  7. REMOVE SPARE WHEEL COVER TRAY RH

    See step  6 [04/2013 - 08/2015], or see step  6 [08/2015 - 09/2020]

  8. REMOVE DECK SIDE TRIM BOX LH

    See step  7 [04/2013 - 08/2015], or see step  7 [08/2015 - 09/2020]

  9. REMOVE DECK SIDE TRIM BOX RH

    See step  8 [04/2013 - 08/2015], or see step  8 [08/2015 - 09/2020]

  10. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    See step  9 [04/2013 - 08/2015], or see step  9 [08/2015 - 09/2020]

  11. ADJUST LUGGAGE COMPARTMENT DOOR

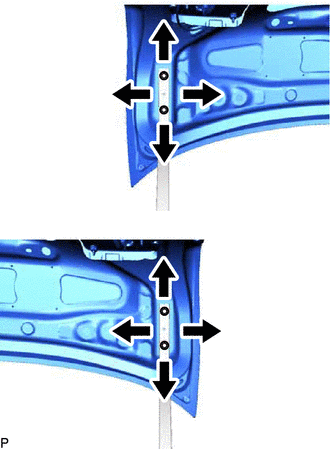

    1. Loosen the door side hinge bolts to adjust the door horizontally and vertically.
      GTY465298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

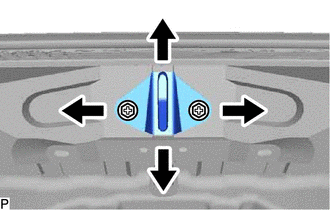

    2. Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.
      GTY465300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a brass bar and a hammer, hit the striker to adjust its position.
    4. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

      Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

  12. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

    See step  15 [04/2013 - 08/2015], or see step  13 [08/2015 - 09/2020]

  13. INSTALL DECK SIDE TRIM BOX RH

    See step  16 [04/2013 - 08/2015], or see step  14 [08/2015 - 09/2020]

  14. INSTALL DECK SIDE TRIM BOX LH

    See step  17 [04/2013 - 08/2015], or see step  15 [08/2015 - 09/2020]

  15. INSTALL SPARE WHEEL COVER TRAY RH

    See step  18 [04/2013 - 08/2015], or see step  16 [08/2015 - 09/2020]

  16. INSTALL SPARE WHEEL COVER TRAY LH

    See step  19 [04/2013 - 08/2015], or see step  17 [08/2015 - 09/2020]

  17. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

    See step  20 [04/2013 - 08/2015], or see step  18 [08/2015 - 09/2020]

  18. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    See step  10 [04/2013 - 10/2017], or see step  10 [10/2017 - 09/2020]

  19. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH

    See step  11 [04/2013 - 10/2017], or see step  11 [10/2017 - 09/2020]

  20. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    See step  12 [04/2013 - 10/2017], or see step  12 [10/2017 - 09/2020]
