HINT:

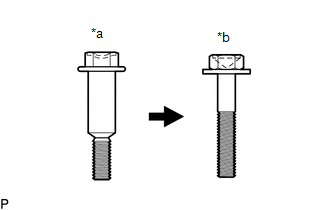

• Centering bolts are used to mount the door hinge to the door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.
• Specified torque for standard bolts is shown in the standard bolt chart.

  Refer to SPECIFIED TORQUE FOR STANDARD BOLTS [04/2013 - ]
