Removal [09/2020 - ]: Procedure

  1. REMOVE REAR LIGHT ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE LUGGAGE ELECTRICAL KEY SWITCH (TELEVISION CAMERA ASSEMBLY)

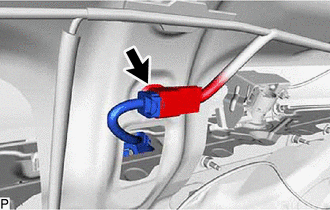

    1. Disconnect the connector.
      GTY967260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

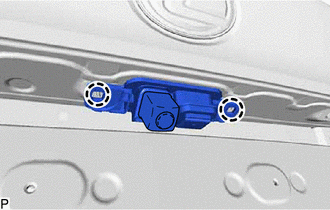

    2. Disengage the 2 claws to remove the luggage electrical key switch (television camera assembly).
      GTY967280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
