Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [04/2013 - 09/2020]

  2. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

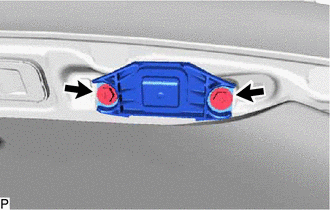

    1. Remove the 2 screws.
      GTY465303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

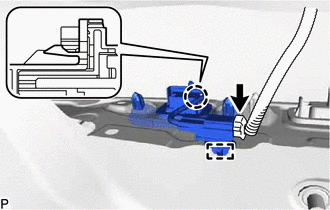

    2. Disconnect the connector.
      GTY465304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp and claw, and remove the luggage electrical key switch.
