Removal [09/2020 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  4. REMOVE LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY

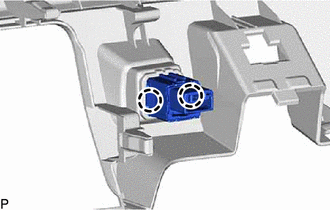

    1. Disengage the 2 claws to remove the luggage compartment door opening switch assembly.
      GTY967271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
