Removal [09/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    See step  4

  2. REMOVE SPARE WHEEL COVER TRAY LH

    See step  5

  3. REMOVE DECK SIDE TRIM BOX LH

    See step  7

  4. REMOVE LUGGAGE COMPARTMENT DOOR STRIKER COVER

    See step  9

  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    See step  10

  6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    See step  11

  7. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  8. REMOVE REAR SEAT SUB FLOOR PANEL

    Refer to PROCEDURE - Step 10

  9. REMOVE NO. 2 ROOM PARTITION COVER

    Refer to PROCEDURE - Step 11

  10. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    See step  18

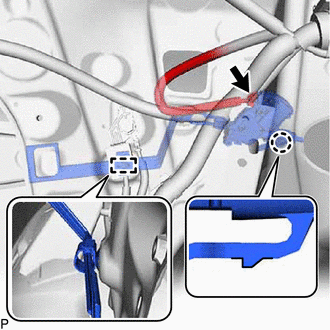

  11. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY
    1. Disconnect the connector.
      GTY967307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disengage the claw and remove the fuel lid lock with motor assembly.
