Removal [04/2013 - 08/2015]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    See step  4

  2. REMOVE SPARE WHEEL COVER TRAY LH

    See step  5

  3. REMOVE DECK SIDE TRIM BOX LH

    See step  7

  4. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    See step  9

  5. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fixed Seat Type)

    See step  10

  6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fold Down Seat Type)

    See step  11

  7. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

    Refer to REMOVAL [04/2013 - 08/2015]

  8. REMOVE REAR SEAT ASSEMBLY (for Fold Down Seat Type)

    Refer to REMOVAL [04/2013 - 10/2016]

  9. REMOVE REAR SEAT SUB FLOOR PANEL (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 11

  10. REMOVE NO. 2 ROOM PARTITION COVER (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 12

  11. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    See step  18

  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    See step  19

  14. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY
    1. Disconnect the connector.

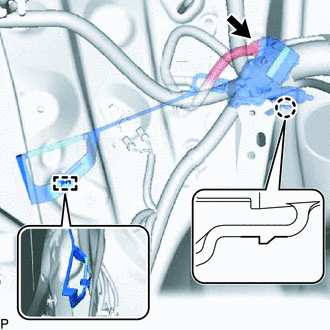

      GTY464340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disengage the claw and remove the fuel lid lock with motor assembly.
