Removal [04/2013 - 10/2016]: Procedure

Refer to REMOVAL [04/2013 - 10/2016]

Refer to REMOVAL [04/2013 - 10/2016]

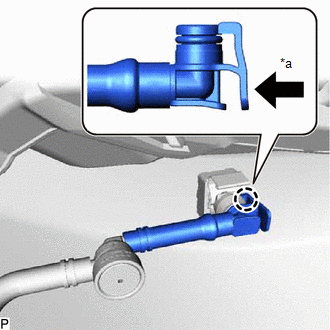

1. Disengage the claw and disconnect the headlight cleaner hose as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Push

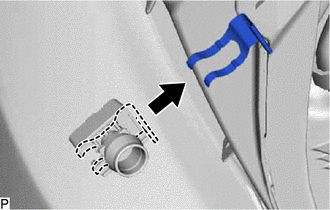

2. Remove the No. 3 headlight cleaner clamp as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

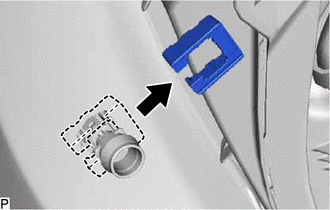

3. Remove the No. 2 headlight cleaner clamp as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the headlight washer actuator sub-assembly LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

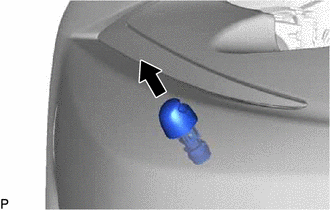

1. Disengage the 2 claws to remove the headlight cleaner washer nozzle cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.
