Components [09/2018 - 09/2020]

Fig 1: Roof Headlining Replacement Components With Torque Specifications [09/2018 - 09/2020] (1 Of 10)
GTY646441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR SEAT CUSHION ASSEMBLY *2 REAR SEAT CUSHION LOCK HOOK
*3 REAR SIDE SEATBACK ASSEMBLY LH *4 REAR SIDE SEATBACK ASSEMBLY RH
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 2: Roof Headlining Replacement Components [09/2018 - 09/2020] (2 Of 10)
GTY668456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER PILLAR GARNISH ASSEMBLY LH *2 FRONT DOOR OPENING TRIM COVER LH
*3 FRONT DOOR SCUFF PLATE LH *4 FRONT PILLAR GARNISH LH
*5 LOWER CENTER PILLAR GARNISH LH *6 REAR DOOR SCUFF PLATE LH
Fig 3: Roof Headlining Replacement Components [09/2018 - 09/2020] (3 Of 10)
GTY467496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER PILLAR GARNISH ASSEMBLY RH *2 FRONT DOOR OPENING TRIM COVER RH
*3 FRONT DOOR SCUFF PLATE RH *4 FRONT PILLAR GARNISH RH
*5 LOWER CENTER PILLAR GARNISH RH *6 REAR DOOR SCUFF PLATE RH
Fig 4: Roof Headlining Replacement Components [09/2018 - 09/2020] (4 Of 10)
GTY460389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INNER ROOF SIDE GARNISH ASSEMBLY LH *2 INNER ROOF SIDE GARNISH ASSEMBLY RH
*3 REAR SEAT SIDE GARNISH LH *4 REAR SEAT SIDE GARNISH RH
Fig 5: Roof Headlining Replacement Components [09/2018 - 09/2020] (5 Of 10)
GTY662898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Rain Sensor - -
*1 MAP LIGHT ASSEMBLY *2 NO. 1 FORWARD RECOGNITION COVER
*3 NO. 2 FORWARD RECOGNITION COVER *4 RAIN SENSOR COVER
*5 SPOT LIGHT ASSEMBLY - -
Fig 6: Roof Headlining Replacement Components [09/2018 - 09/2020] (6 Of 10)
GTY467640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ASSIST GRIP SUB-ASSEMBLY *2 REAR ASSIST GRIP ASSEMBLY LH
*3 REAR ASSIST GRIP ASSEMBLY RH *4 VISOR ASSEMBLY LH
*5 VISOR ASSEMBLY RH *6 VISOR BRACKET COVER LH
*7 VISOR BRACKET COVER RH *8 VISOR HOLDER
*9 ASSIST GRIP COVER *10 ASSIST GRIP
Fig 7: Roof Headlining Replacement Components [09/2018 - 09/2020] (7 Of 10)
GTY615476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Sliding Roof *B w/ Sliding Roof
*1 ROOF HEADLINING ASSEMBLY - -
Fig 8: Roof Headlining Replacement Components [09/2018 - 09/2020] (8 Of 10)
GTY619901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Sliding Roof - -
*1 NO. 1 ROOF SILENCER PAD *2 NO. 1 ROOF WIRE
*3 NO. 2 ROOF SILENCER PAD *4 NO. 3 ROOF SILENCER PAD
*5 REAR SIDE RAIL SPACER LH *6 REAR SIDE RAIL SPACER RH
*7 ROOF HEADLINING PAD *8 VANITY LIGHT ASSEMBLY
*9 ROOF HEADLINING - -

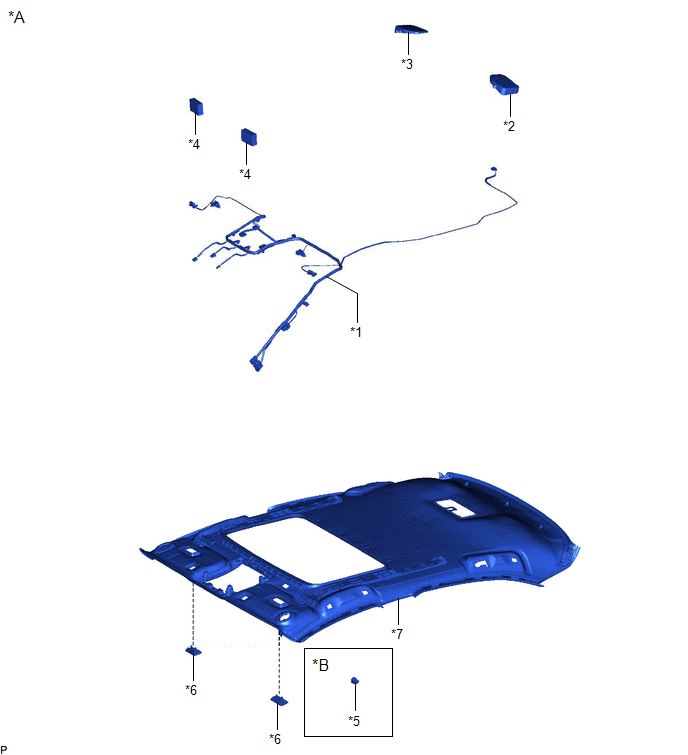

Fig 9: Roof Headlining Replacement Components [09/2018 - 09/2020] (9 Of 10)
GTY824226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Sliding Roof *B w/ Microphone
*1 NO. 1 ROOF WIRE *2 REAR SIDE RAIL SPACER LH
*3 REAR SIDE RAIL SPACER RH *4 ROOF HEADLINING PAD
*5 TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE *6 VANITY LIGHT ASSEMBLY
*7 ROOF HEADLINING - -
Fig 10: Roof Headlining Replacement Components [09/2018 - 09/2020] (10 Of 10)
GTY460536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR OPENING TRIM WEATHERSTRIP LH *2 FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*3 REAR DOOR OPENING TRIM WEATHERSTRIP LH *4 REAR DOOR OPENING TRIM WEATHERSTRIP RH
