Components [08/2015 - 10/2016]
Fig 1: Roof Headlining Replacement Components With Torque Specifications [08/2015 - 10/2016] (1 Of 10)

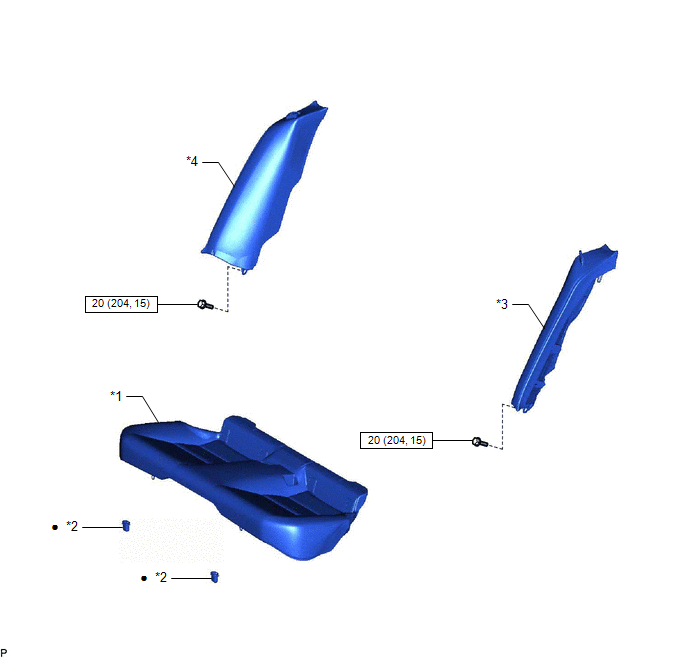

| *1 | REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| *3 | REAR SIDE SEATBACK ASSEMBLY LH | *4 | REAR SIDE SEATBACK ASSEMBLY RH |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

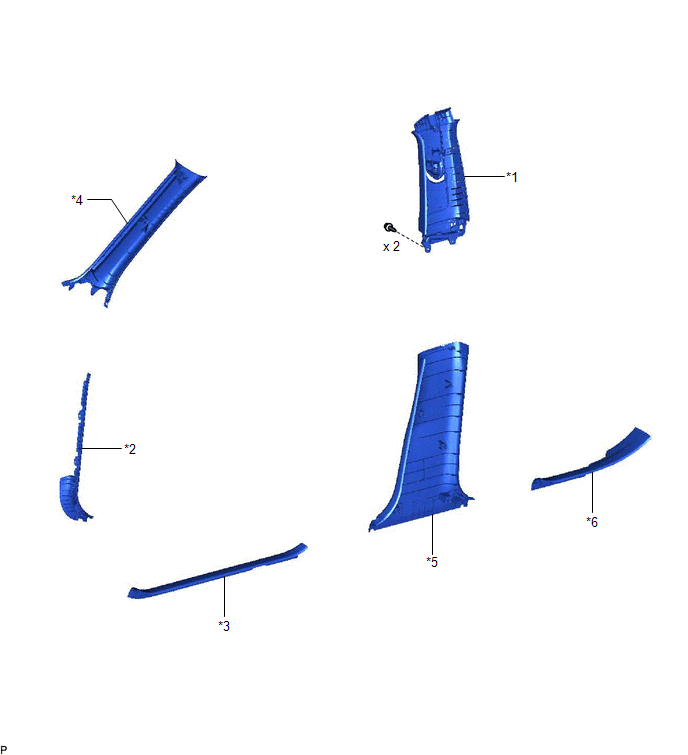

| *1 | CENTER PILLAR GARNISH ASSEMBLY LH | *2 | FRONT DOOR OPENING TRIM COVER LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | FRONT PILLAR GARNISH LH |
| *5 | LOWER CENTER PILLAR GARNISH LH | *6 | REAR DOOR SCUFF PLATE LH |
| *1 | CENTER PILLAR GARNISH ASSEMBLY RH | *2 | FRONT DOOR OPENING TRIM COVER RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | FRONT PILLAR GARNISH RH |
| *5 | LOWER CENTER PILLAR GARNISH RH | *6 | REAR DOOR SCUFF PLATE RH |
| *1 | INNER ROOF SIDE GARNISH ASSEMBLY LH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *3 | REAR SEAT SIDE GARNISH LH | *4 | REAR SEAT SIDE GARNISH RH |
| *A | w/o Lane Departure Alert System | *B | w/ Lane Departure Alert System |
| *C | w/ Rain Sensor | - | - |
| *1 | INNER REAR VIEW MIRROR STAY HOLDER COVER | *2 | LANE DEPARTURE WARNING CAMERA COVER |
| *3 | MAP LIGHT ASSEMBLY | *4 | RAIN SENSOR COVER |
| *5 | SPOT LIGHT ASSEMBLY | - | - |
| *1 | ASSIST GRIP SUB-ASSEMBLY | *2 | REAR ASSIST GRIP ASSEMBLY LH |
| *3 | REAR ASSIST GRIP ASSEMBLY RH | *4 | VISOR ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | VISOR BRACKET COVER LH |
| *7 | VISOR BRACKET COVER RH | *8 | VISOR HOLDER |
| *9 | ASSIST GRIP COVER | *10 | ASSIST GRIP |
| *A | w/o Sliding Roof | *B | w/ Sliding Roof |
| *1 | ROOF HEADLINING ASSEMBLY | - | - |
| *A | w/o Sliding Roof | - | - |
| *1 | NO. 1 ROOF SILENCER PAD | *2 | NO. 1 ROOF WIRE |
| *3 | NO. 2 ROOF SILENCER PAD | *4 | NO. 3 ROOF SILENCER PAD |
| *5 | REAR SIDE RAIL SPACER LH | *6 | REAR SIDE RAIL SPACER RH |
| *7 | ROOF HEADLINING PAD | *8 | VANITY LIGHT ASSEMBLY |
| *9 | ROOF HEADLINING | - | - |
| *A | w/ Sliding Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | REAR SIDE RAIL SPACER LH |
| *3 | REAR SIDE RAIL SPACER RH | *4 | ROOF HEADLINING PAD |
| *5 | VANITY LIGHT ASSEMBLY | *6 | ROOF HEADLINING |
| *1 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *4 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
