Components [09/2020 - ]
| *1 | INNER ROOF SIDE GARNISH ASSEMBLY LH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *3 | REAR DOOR SCUFF PLATE LH | *4 | REAR DOOR SCUFF PLATE RH |
| *5 | REAR SEAT SIDE GARNISH LH | *6 | REAR SEAT SIDE GARNISH RH |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT FLOOR MAT |
| *3 | NO. 1 ROOM PARTITION COVER | *4 | NO. 2 ROOM PARTITION COVER |
| *5 | NO. 3 ROOM PARTITION COVER | *6 | REAR SEAT SUB FLOOR PANEL |

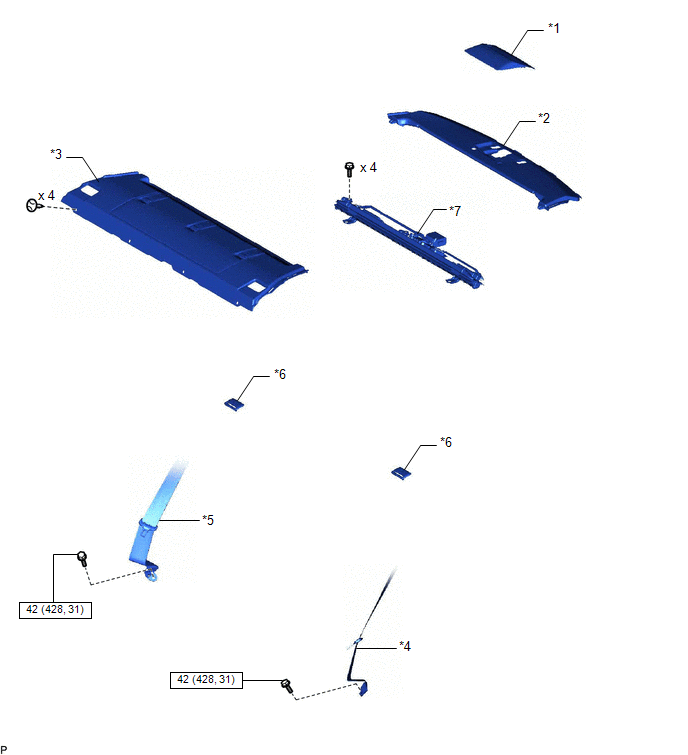

Fig 3: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications [09/2020 - ] (3 Of 4)
| *1 | CENTER STOP LIGHT ASSEMBLY WITH COVER | *2 | NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY |
| *3 | PACKAGE TRAY TRIM PANEL ASSEMBLY | *4 | REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH |
| *5 | REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH | *6 | REAR SEAT SHOULDER BELT HOLE COVER |
| *7 | REAR WINDOW SHADE ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

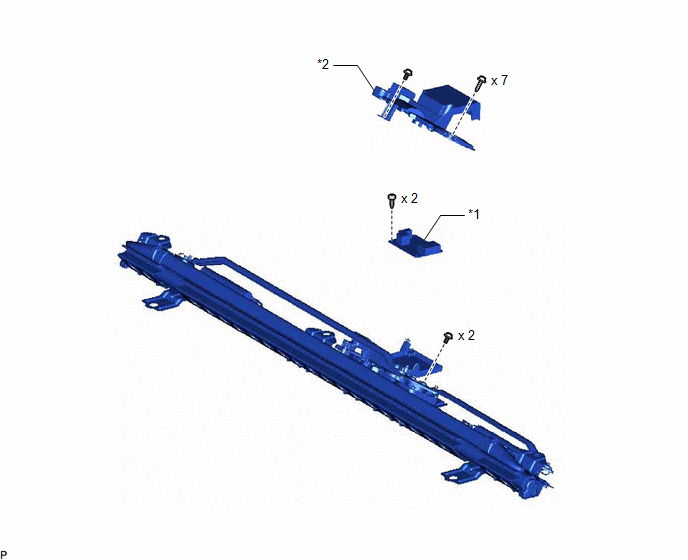

| *1 | REAR SUNSHADE RELAY | *2 | REAR SUNSHADE RELAY COVER |
