Components [04/2013 - 09/2020]

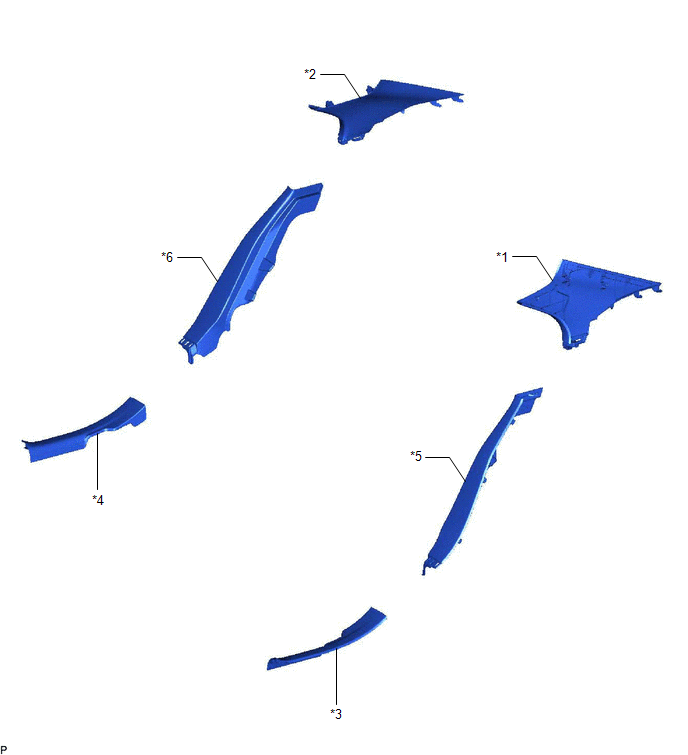

Fig 1: Rear Sunshade Assembly Replacement Components [04/2013 - 09/2020] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INNER ROOF SIDE GARNISH ASSEMBLY LH	*2	INNER ROOF SIDE GARNISH ASSEMBLY RH
*3	REAR DOOR SCUFF PLATE LH	*4	REAR DOOR SCUFF PLATE RH
*5	REAR SEAT SIDE GARNISH LH	*6	REAR SEAT SIDE GARNISH RH

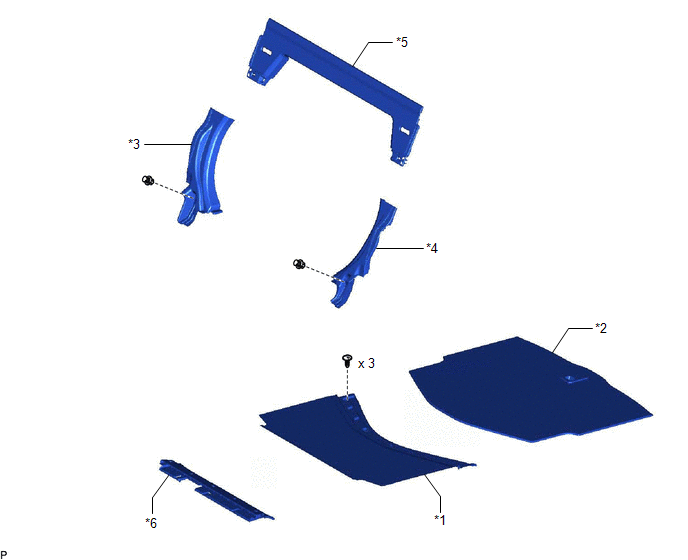

Fig 2: Rear Sunshade Assembly Replacement Components [04/2013 - 09/2020] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT LUGGAGE COMPARTMENT TRIM COVER	*2	LUGGAGE COMPARTMENT FLOOR MAT
*3	NO. 1 ROOM PARTITION COVER	*4	NO. 2 ROOM PARTITION COVER
*5	NO. 3 ROOM PARTITION COVER	*6	REAR SEAT SUB FLOOR PANEL

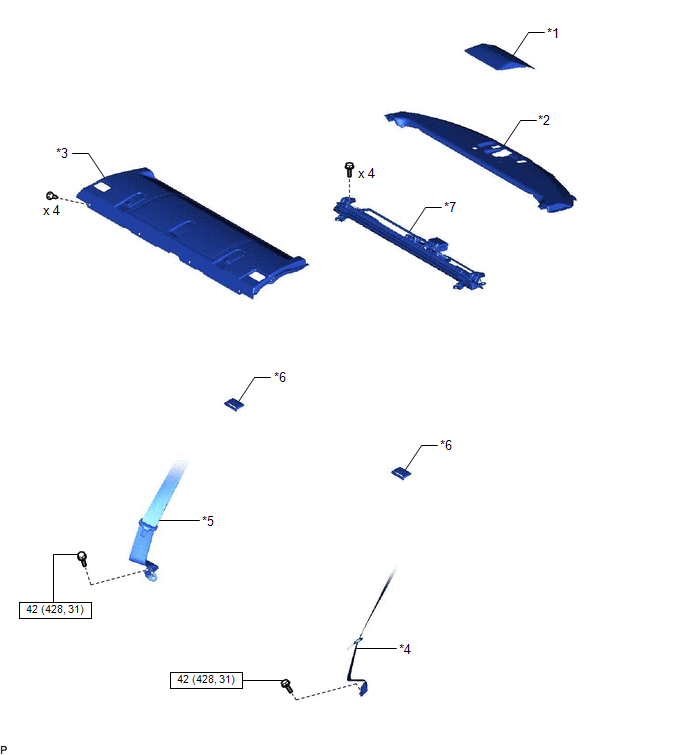

Fig 3: Rear Sunshade Assembly Replacement Components With Torque Specifications [04/2013 - 09/2020] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER STOP LIGHT ASSEMBLY WITH COVER	*2	NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY
*3	PACKAGE TRAY TRIM PANEL ASSEMBLY	*4	REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH
*5	REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH	*6	REAR SEAT SHOULDER BELT HOLE COVER
*7	REAR WINDOW SHADE ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

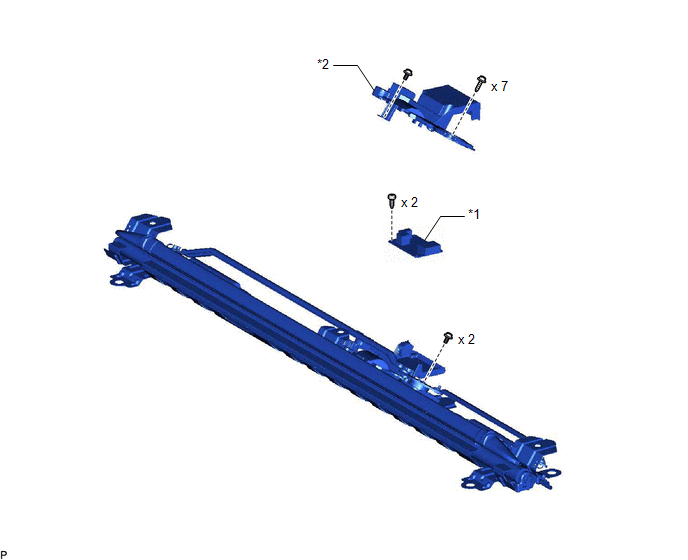

Fig 4: Rear Sunshade Assembly Replacement Components [04/2013 - 09/2020] (4 Of 4)

REAR SUNSHADE RELAY

REAR SUNSHADE RELAY COVER
