Components [10/2017 - 09/2020]

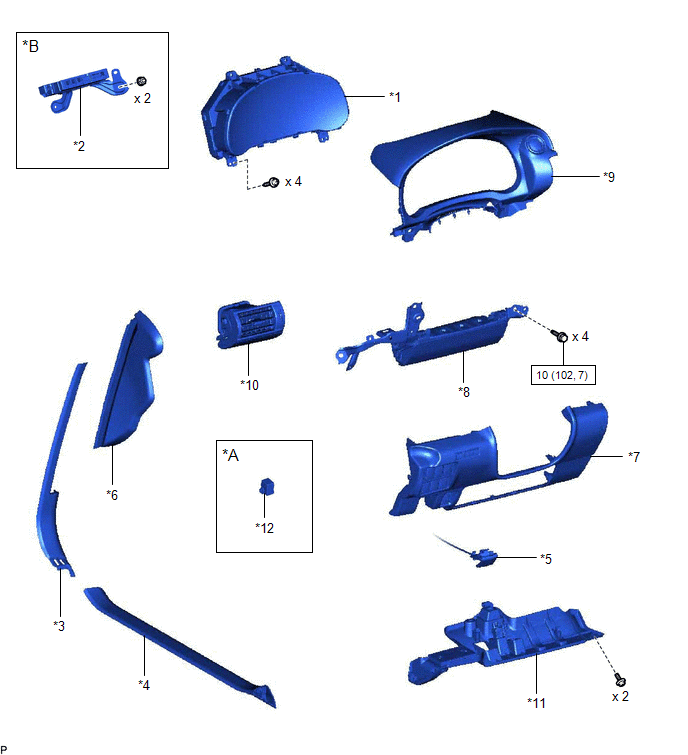

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2017 - 09/2020] (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Pre-collision System	*B	w/ Safety Connect System
*1	COMBINATION METER ASSEMBLY	*2	DCM (TELEMATICS TRANSCEIVER)
*3	FRONT DOOR OPENING TRIM COVER LH	*4	FRONT DOOR SCUFF PLATE LH
*5	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	*6	INSTRUMENT SIDE PANEL LH
*7	LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY	*8	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
*9	METER HOOD SUB-ASSEMBLY	*10	NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
*11	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	*12	SKID CONTROL BUZZER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2017 - 09/2020] (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING WHEEL ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2017 - 09/2020] (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR OPENING TRIM COVER RH	*2	FRONT DOOR SCUFF PLATE RH
*3	GLOVE COMPARTMENT DOOR ASSEMBLY	*4	INSTRUMENT SIDE PANEL RH
*5	LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY	*6	NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
*7	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 4: Instrument Panel Safety Pad Replacement Components [10/2017 - 09/2020] (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ ASC System	-	-
*1	AIR CONDITIONING CONTROL ASSEMBLY	*2	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
*3	INSTRUMENT CLUSTER FINISH PANEL ORNAMENT	*4	MULTI-DISPLAY ASSEMBLY WITH BRACKET
*5	NO. 1 SPEAKER ASSEMBLY WITH BOX	*6	NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
*7	RADIO RECEIVER ASSEMBLY WITH BRACKET	-	-

Fig 5: Instrument Panel Safety Pad Replacement Components [10/2017 - 09/2020] (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 2 SPEAKER ASSEMBLY	*2	FRONT NO. 3 SPEAKER ASSEMBLY
*3	FRONT PILLAR GARNISH LH	*4	FRONT PILLAR GARNISH RH
*5	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	*6	NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
*7	NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY	-	-

Fig 6: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2017 - 09/2020] (6 Of 8)

*1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

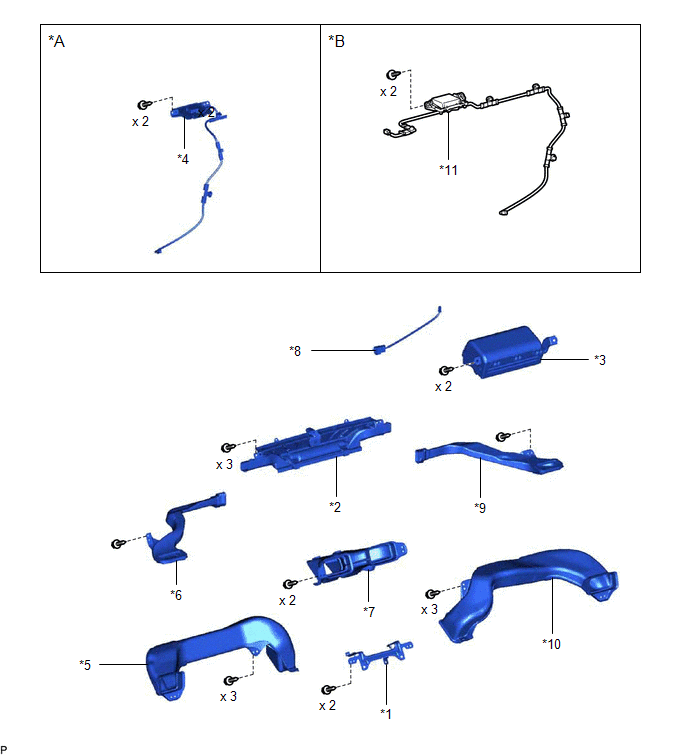

Fig 7: Instrument Panel Safety Pad Replacement Components [10/2017 - 09/2020] (7 Of 8)

*A	w/ Navigation System	*B	w/ Safety Connect System
*1	BRACKET	*2	DEFROSTER NOZZLE ASSEMBLY
*3	INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY	*4	NAVIGATION ANTENNA ASSEMBLY
*5	NO. 1 HEATER TO REGISTER DUCT	*6	NO. 1 SIDE DEFROSTER NOZZLE DUCT
*7	NO. 2 HEATER TO REGISTER DUCT	*8	NO. 2 INSTRUMENT PANEL WIRE
*9	NO. 2 SIDE DEFROSTER NOZZLE DUCT	*10	NO. 3 HEATER TO REGISTER DUCT
*11	TELEPHONE AND GPS ANTENNA ASSEMBLY	-	-

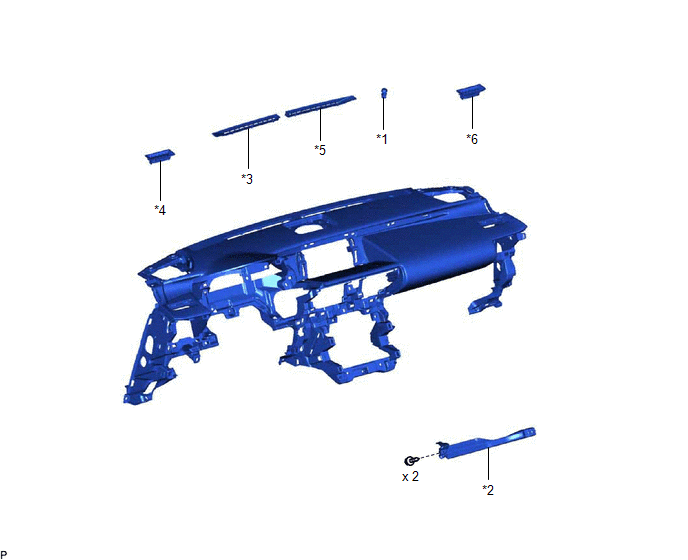

Fig 8: Instrument Panel Safety Pad Replacement Components [10/2017 - 09/2020] (8 Of 8)

*1	AUTOMATIC LIGHT CONTROL SENSOR	*2	GLOVE COMPARTMENT BRACKET
*3	NO. 1 DEFROSTER NOZZLE GARNISH	*4	NO. 1 SIDE DEFROSTER NOZZLE
*5	NO. 2 DEFROSTER NOZZLE GARNISH	*6	NO. 2 SIDE DEFROSTER NOZZLE
