Components [09/2020 - ]

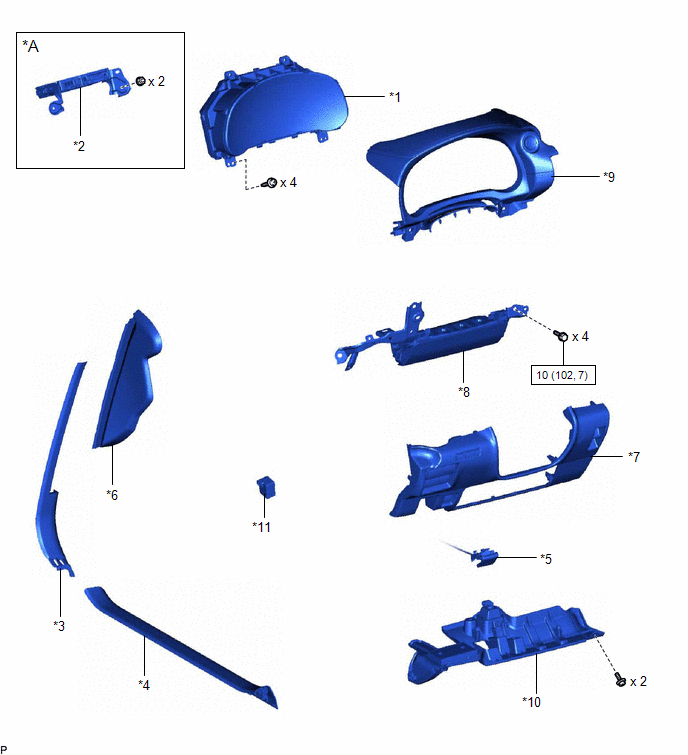

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications [09/2020 - ] (1 Of 8)
| *A | w/ Manual (SOS) Switch | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | DCM (TELEMATICS TRANSCEIVER) WITH BRACKET |
| *3 | FRONT DOOR OPENING TRIM COVER LH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *6 | INSTRUMENT SIDE PANEL LH |
| *7 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *8 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *9 | METER HOOD SUB-ASSEMBLY | *10 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *11 | SKID CONTROL BUZZER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

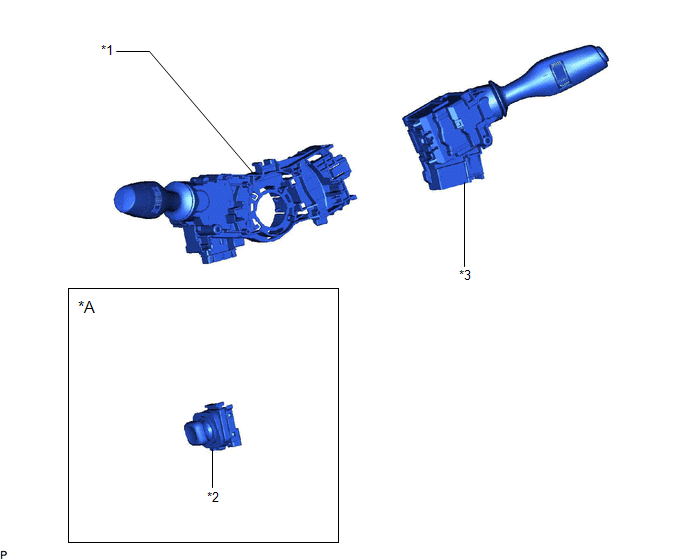

| *A | for Power Tilt and Power Telescopic Steering Column | - | - |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | TILT AND TELESCOPIC SWITCH |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY | - | - |

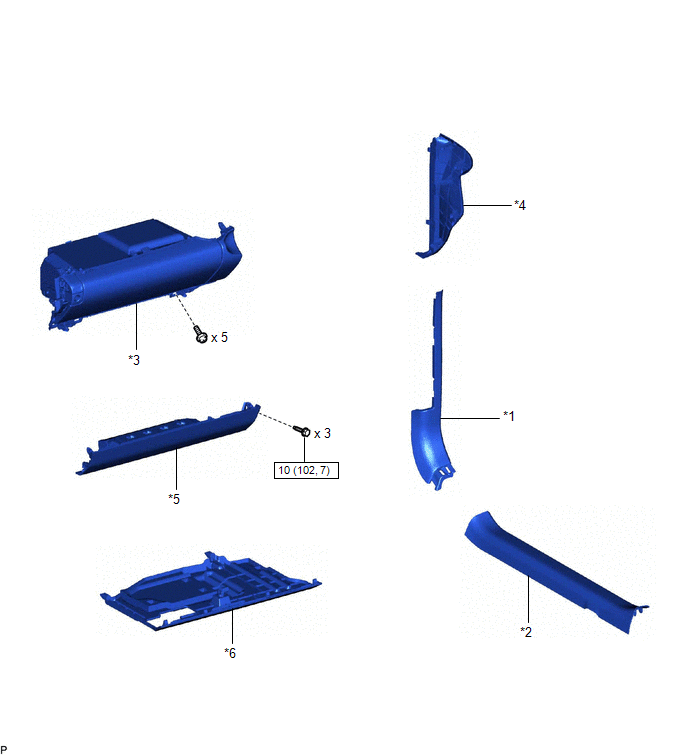

Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications [09/2020 - ] (3 Of 8)
| *1 | FRONT DOOR OPENING TRIM COVER RH | *2 | FRONT DOOR SCUFF PLATE RH |
| *3 | GLOVE COMPARTMENT DOOR ASSEMBLY | *4 | INSTRUMENT SIDE PANEL RH |
| *5 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY | *6 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

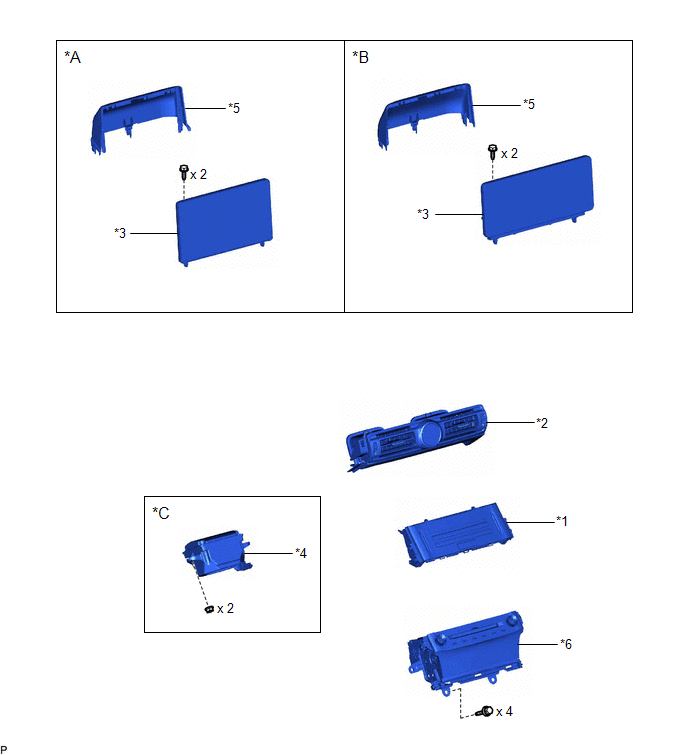

| *A | for 8 Inch Display | *B | for 10.3 Inch Display |
| *C | w/ ASC System | - | - |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | CENTER INSTRUMENT PANEL REGISTER ASSEMBLY |
| *3 | MULTI-DISPLAY ASSEMBLY WITH BRACKET | *4 | NO. 1 SPEAKER ASSEMBLY WITH BOX |
| *5 | NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *6 | RADIO RECEIVER ASSEMBLY WITH BRACKET |

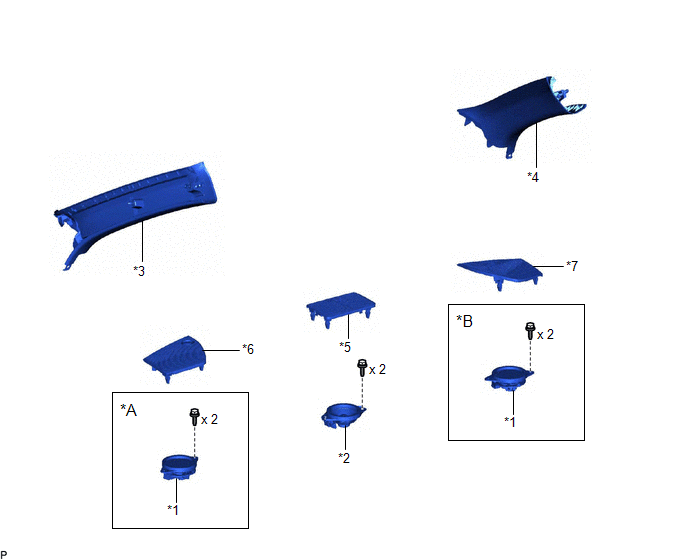

| *A | for LH Side | *B | for RH Side |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY | *2 | FRONT NO. 3 SPEAKER ASSEMBLY |
| *3 | FRONT PILLAR GARNISH LH | *4 | FRONT PILLAR GARNISH RH |
| *5 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | *6 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |
| *7 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | - | - |

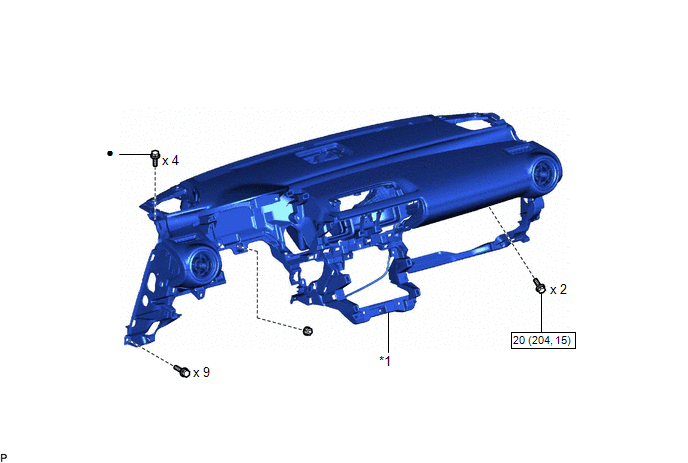

Fig 6: Instrument Panel Safety Pad Replacement Components With Torque Specifications [09/2020 - ] (6 Of 8)
| *1 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

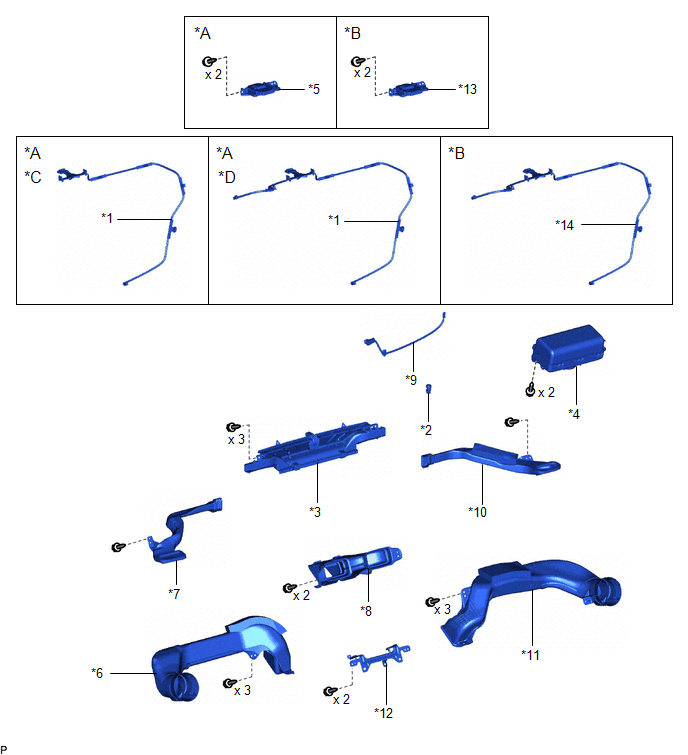

| *A | for Type A | *B | for Type B |
| *C | w/o Manual (SOS) Switch | *D | w/ Manual (SOS) Switch |
| *1 | ANTENNA CORD SUB-ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | DEFROSTER NOZZLE ASSEMBLY | *4 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *5 | NAVIGATION ANTENNA ASSEMBLY WITH BRACKET | *6 | NO. 1 HEATER TO REGISTER DUCT |
| *7 | NO. 1 SIDE DEFROSTER NOZZLE DUCT | *8 | NO. 2 HEATER TO REGISTER DUCT |
| *9 | NO. 2 INSTRUMENT PANEL WIRE | *10 | NO. 2 SIDE DEFROSTER NOZZLE DUCT |
| *11 | NO. 3 HEATER TO REGISTER DUCT | *12 | SPEAKER BRACKET |
| *13 | TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET | *14 | TELEPHONE AND GPS ANTENNA CORD |

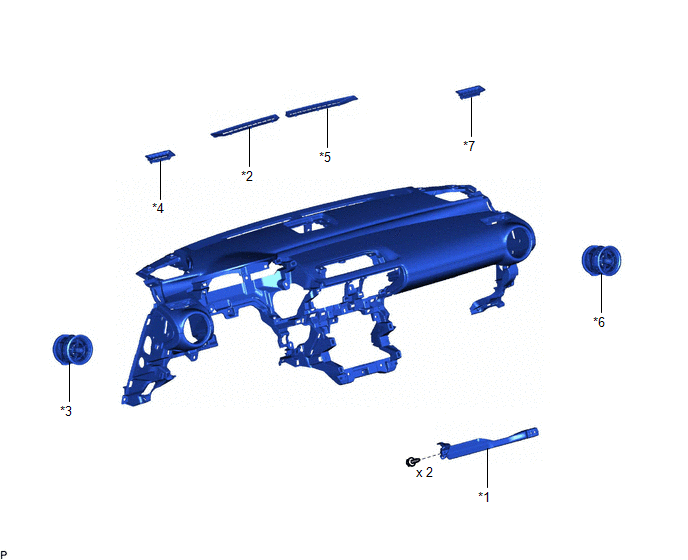

| *1 | GLOVE COMPARTMENT BRACKET | *2 | NO. 1 DEFROSTER NOZZLE GARNISH |
| *3 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *4 | NO. 1 SIDE DEFROSTER NOZZLE |
| *5 | NO. 2 DEFROSTER NOZZLE GARNISH | *6 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *7 | NO. 2 SIDE DEFROSTER NOZZLE | - | - |
