Components [04/2013 - 10/2016]

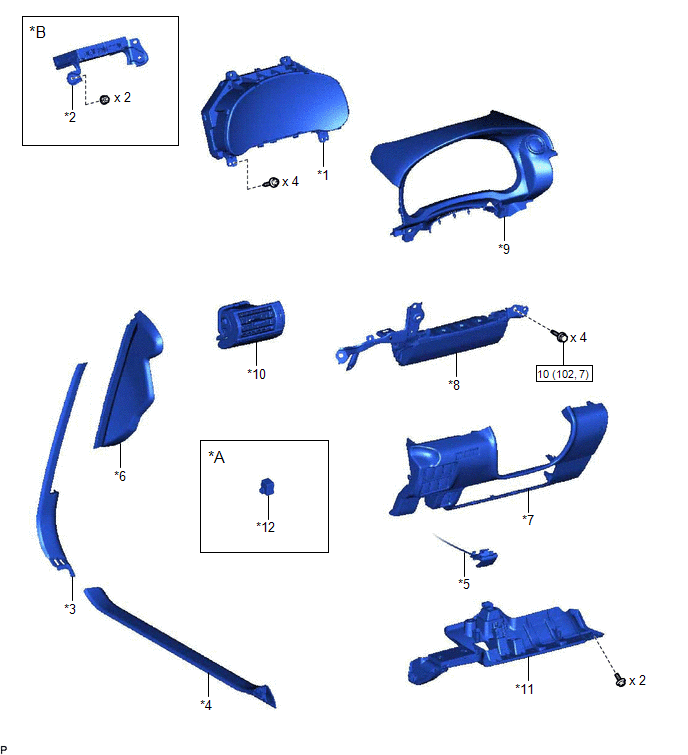

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications [04/2013 - 10/2016] (1 Of 7)
| *A | w/ Pre-collision System | *B | w/ Safety Connect System |
| *1 | COMBINATION METER ASSEMBLY | *2 | DCM (TELEMATICS TRANSCEIVER) WITH BRACKET |
| *3 | FRONT DOOR OPENING TRIM COVER LH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *6 | INSTRUMENT SIDE PANEL LH |
| *7 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *8 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *9 | METER HOOD SUB-ASSEMBLY | *10 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *11 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *12 | SKID CONTROL BUZZER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

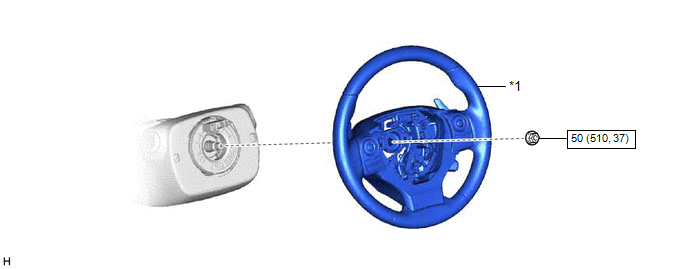

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications [04/2013 - 10/2016] (2 Of 7)
| *1 | STEERING WHEEL ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications [04/2013 - 10/2016] (3 Of 7)
| *1 | FRONT DOOR OPENING TRIM COVER RH | *2 | FRONT DOOR SCUFF PLATE RH |
| *3 | GLOVE COMPARTMENT DOOR ASSEMBLY | *4 | INSTRUMENT SIDE PANEL RH |
| *5 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY | *6 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *7 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

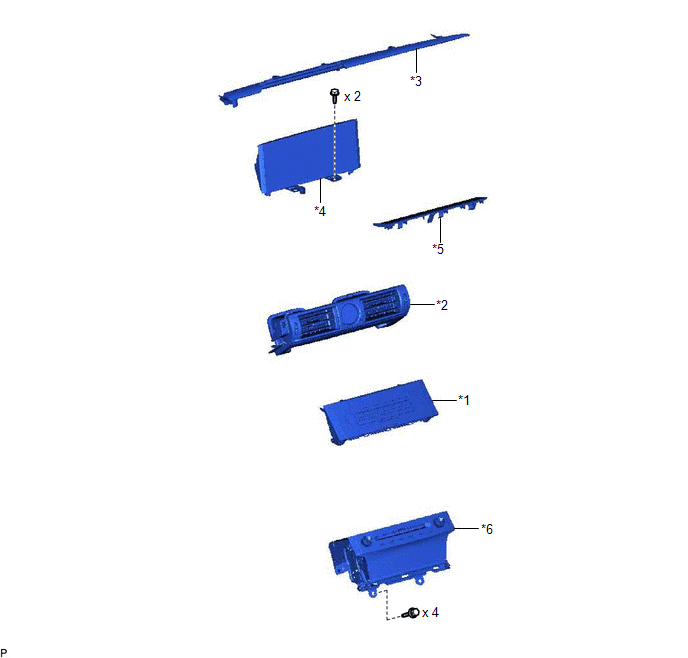

| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | CENTER INSTRUMENT PANEL REGISTER ASSEMBLY |
| *3 | INSTRUMENT CLUSTER FINISH PANEL ORNAMENT | *4 | MULTI-DISPLAY ASSEMBLY WITH BRACKET |
| *5 | NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *6 | RADIO RECEIVER ASSEMBLY WITH BRACKET |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY | *2 | FRONT NO. 3 SPEAKER ASSEMBLY |
| *3 | FRONT PILLAR GARNISH LH | *4 | FRONT PILLAR GARNISH RH |
| *5 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | *6 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |
| *7 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | - | - |
Fig 6: Instrument Panel Safety Pad Replacement Components With Torque Specifications [04/2013 - 10/2016] (6 Of 7)
| *1 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
| *A | w/ Navigation System | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | BRACKET |
| *3 | DEFROSTER NOZZLE ASSEMBLY | *4 | GLOVE COMPARTMENT BRACKET |
| *5 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY | *6 | NAVIGATION ANTENNA ASSEMBLY |
| *7 | NO. 1 DEFROSTER NOZZLE GARNISH | *8 | NO. 1 HEATER TO REGISTER DUCT |
| *9 | NO. 1 SIDE DEFROSTER NOZZLE | *10 | NO. 1 SIDE DEFROSTER NOZZLE DUCT |
| *11 | NO. 2 DEFROSTER NOZZLE GARNISH | *12 | NO. 2 HEATER TO REGISTER DUCT |
| *13 | NO. 2 INSTRUMENT PANEL WIRE | *14 | NO. 2 SIDE DEFROSTER NOZZLE |
| *15 | NO. 2 SIDE DEFROSTER NOZZLE DUCT | *16 | NO. 3 HEATER TO REGISTER DUCT |
