Components [10/2016 - 09/2020]

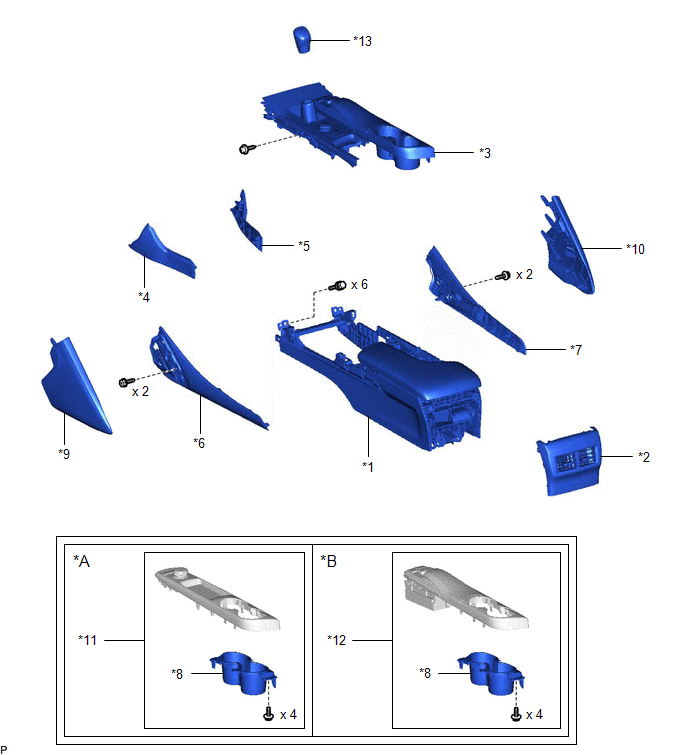

| *A | for Radio and Display Type | *B | for Multi-Media Module Receiver Type |
| *1 | CONSOLE BOX ASSEMBLY | *2 | CONSOLE BOX REGISTER ASSEMBLY |
| *3 | CONSOLE PANEL SUB-ASSEMBLY | *4 | FRONT NO. 1 CONSOLE BOX INSERT |
| *5 | FRONT NO. 2 CONSOLE BOX INSERT | *6 | FRONT PANEL GARNISH LH |
| *7 | FRONT PANEL GARNISH RH | *8 | INSTRUMENT PANEL CUP HOLDER |
| *9 | INSTRUMENT PANEL FINISH PANEL END LH | *10 | INSTRUMENT PANEL FINISH PANEL END RH |
| *11 | LEXUS DISPLAY AUDIO CONTROLLER | *12 | REMOTE TOUCH |
| *13 | SHIFT LEVER KNOB SUB-ASSEMBLY | - | - |

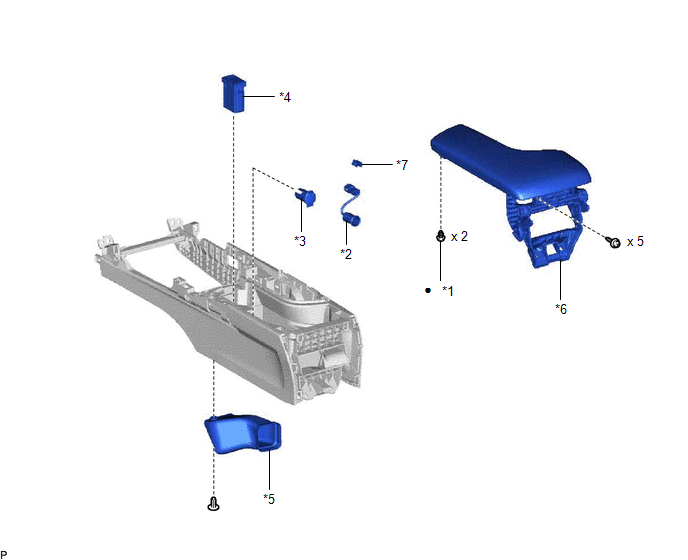

| *1 | CONSOLE COMPARTMENT DOOR CUSHION | *2 | NO. 1 POWER OUTLET SOCKET ASSEMBLY |
| *3 | NO. 1 POWER OUTLET SOCKET COVER | *4 | NO. 1 STEREO JACK ADAPTER ASSEMBLY |
| *5 | NO. 2 CONSOLE BOX DUCT | *6 | REAR CONSOLE ARMREST ASSEMBLY |
| *7 | WIRING HARNESS CLAMP | - | - |
| • | Non-reusable part | - | - |
