Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [10/2016 - 09/2020]

  2. REMOVE NO. 1 ULTRASONIC SENSOR

    HINT:

    Use the same procedure for all No. 1 ultrasonic sensors.

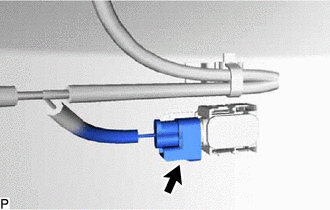

    1. Disconnect the connector.
      GTY800923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

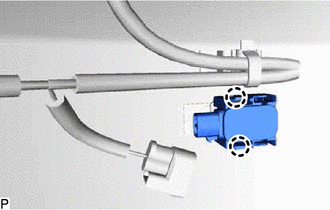

    2. Disengage the 2 claws and remove the No. 1 ultrasonic sensor.
      GTY832911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER

    HINT:

    • Perform this procedure only when replacement of the No. 1 ultrasonic sensor retainer is necessary.
    • Use the same procedure for all No. 1 ultrasonic sensor retainers.

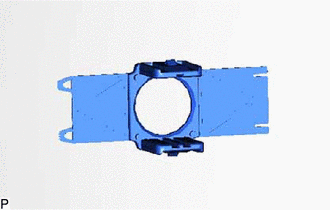

    1. Remove the No. 1 ultrasonic sensor retainer.
      GTY639405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
