Removal [09/2020 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE REAR CENTER ULTRASONIC SENSOR

    HINT:

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

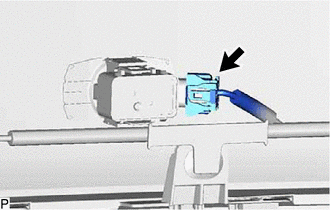

    1. Disconnect the connector.
      GTY970635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

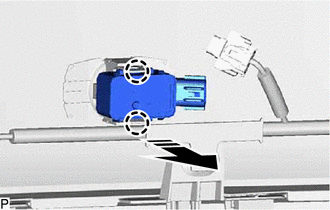

    2. Disengage the 2 claws and remove the rear center ultrasonic sensor as shown in the illustration.
      GTY971597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE REAR CORNER ULTRASONIC SENSOR

    HINT:

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

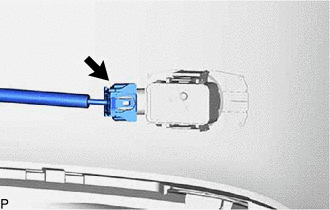

    1. Disconnect the connector.
      GTY971369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

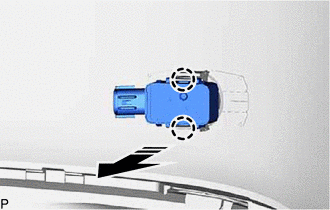

    2. Disengage the 2 claws and remove the rear corner ultrasonic sensor as shown in the illustration.
      GTY971754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

    HINT:

    • Perform this procedure only when replacement of the rear center ultrasonic sensor retainer is necessary.
    • When removing the rear center ultrasonic sensor retainer, heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light.
    • The illustration is for the LH side. Use the same procedure for the RH side and LH side.
    1. Heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

      Heating Temperature

      Item Temperature
      Rear Bumper Assembly 40 to 60°C (104 to 140°F)
      Rear Center Ultrasonic Sensor Retainer
      WARNING:
      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Heat Light

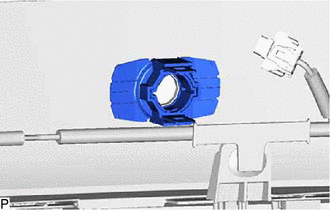

    2. Remove the rear center ultrasonic sensor retainer.
      GTY971377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

    HINT:

    • Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.
    • When removing the rear corner ultrasonic sensor retainer, heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.
    • The illustration is for the LH side. Use the same procedure for the RH side and LH side.
    1. Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

      Heating Temperature

      Item Temperature
      Rear Bumper Assembly 40 to 60°C (104 to 140°F)
      Rear Corner Ultrasonic Sensor Retainer
      WARNING:
      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Heat Light

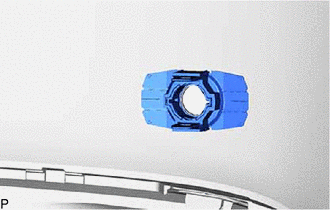

    2. Remove the rear corner ultrasonic sensor retainer.
      GTY971413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
