Removal [04/2013 - 10/2016]: Procedure

REMOVE REAR BUMPER ASSEMBLY
Refer to REMOVAL [04/2013 - 10/2016]
REMOVE NO. 3 LUGGAGE ROOM WIRE
Refer to PROCEDURE - Step 6

REMOVE ULTRASONIC SENSOR WITH CLIP

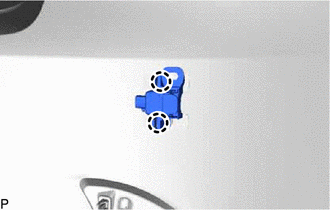

for Corner Sensor:

Disengage the 2 claws and remove the ultrasonic sensor with clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

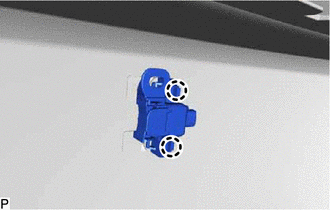

for Back Sensor:

Disengage the 2 claws and remove the ultrasonic sensor with clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

REMOVE NO. 1 ULTRASONIC SENSOR RETAINER

HINT:

Perform this step only when necessary.

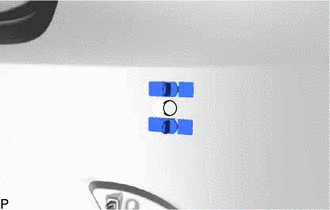

Remove the No. 1 ultrasonic sensor retainer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for all No. 1 ultrasonic sensor retainers.

REMOVE ULTRASONIC SENSOR CLIP

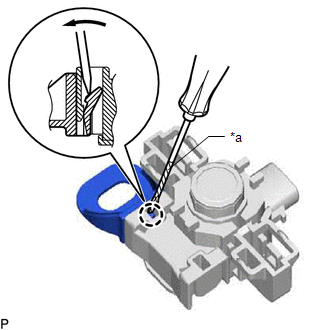

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the ultrasonic sensor clip from the No. 1 ultrasonic sensor.

*a	Protective tape

HINT:

Use the same procedure for all ultrasonic sensor clips.

REMOVE NO. 1 ULTRASONIC SENSOR
