Removal [04/2013 - 10/2016]: Procedure

REMOVE FRONT BUMPER ASSEMBLY
for Standard: Refer to REMOVAL [04/2013 - 10/2016]

for Sport Package: Refer to REMOVAL [04/2013 - 10/2016]

REMOVE NO. 1 ULTRASONIC SENSOR

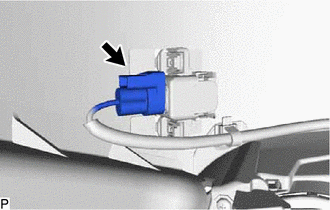

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

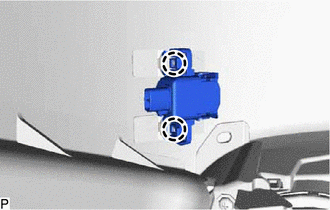

Disengage the 2 claws to remove the No. 1 ultrasonic sensor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

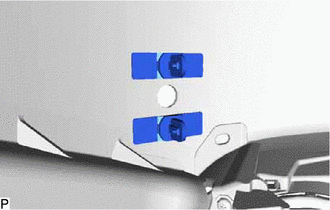

REMOVE NO. 1 ULTRASONIC SENSOR RETAINER

HINT:

Perform this step only when necessary.

Remove the No. 1 ultrasonic sensor retainer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the RH side and LH side.

REMOVE NO. 2 ULTRASONIC SENSOR

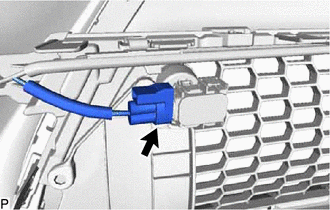

Disconnect the connector.

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

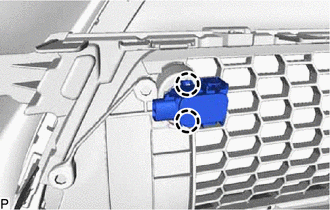

Disengage the 2 claws to remove the No. 2 ultrasonic sensor.

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

REMOVE NO. 2 ULTRASONIC SENSOR RETAINER

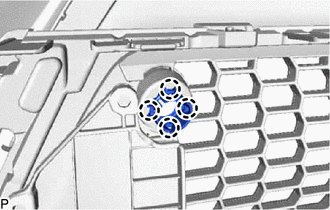

Disengage the 4 claws to remove the No. 2 ultrasonic sensor retainer from the front bumper assembly.
