Installation [09/2020 - ]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY

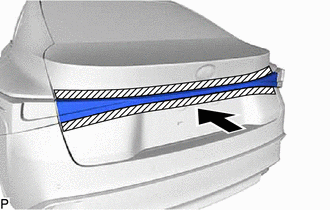

    1. Temporarily install the rear light assembly as shown in the illustration.
      GTY971651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear light assembly with the 8 nuts and 4 screws.

      Nut

      Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

    3. Engage the 2 grommets.
    4. Connect the 2 connectors.
  2. INSTALL REAR LIGHT COVER LH

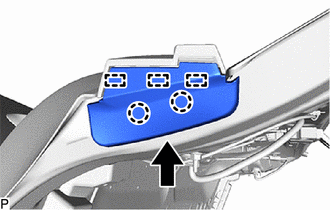

    1. Engage the 3 guides and 2 claws to install the rear light cover LH as shown in the illustration.
      GTY971157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. INSTALL NO. 3 OUTSIDE LUGGAGE COMPARTMENT DOOR GARNISH

    Refer to PROCEDURE - Step 1

  5. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 12
