Removal [04/2013 - 06/2014]: Procedure

Refer to REMOVAL [04/2013 - 10/2016]

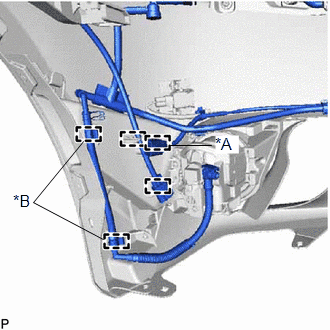

1. Disengage each clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Intuitive Parking Assist System
   *B	w/ Headlight Cleaner System

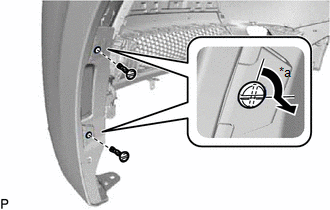

2. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   90°

3. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the clip.
5. Disengage the 2 claws and guide, to remove the intake air duct.

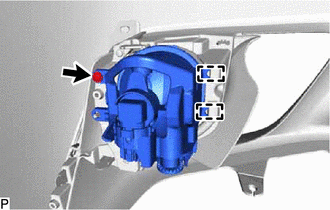

1. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 guides and fog light assembly.
