Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    for Standard: Refer to REMOVAL [04/2013 - 10/2016]

    for Sport Package: Refer to REMOVAL [04/2013 - 10/2016]

  2. REMOVE CLEARANCE LIGHT ASSEMBLY

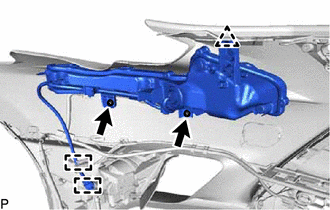

    1. Disengage the 2 clamps.
      GTY468954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
    3. Remove the 2 screws and clearance light assembly.
