System Diagram [08/2015 - 10/2016]

Fig 1: Meter / Gauge System Diagram (1 Of 4)
GTY644421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

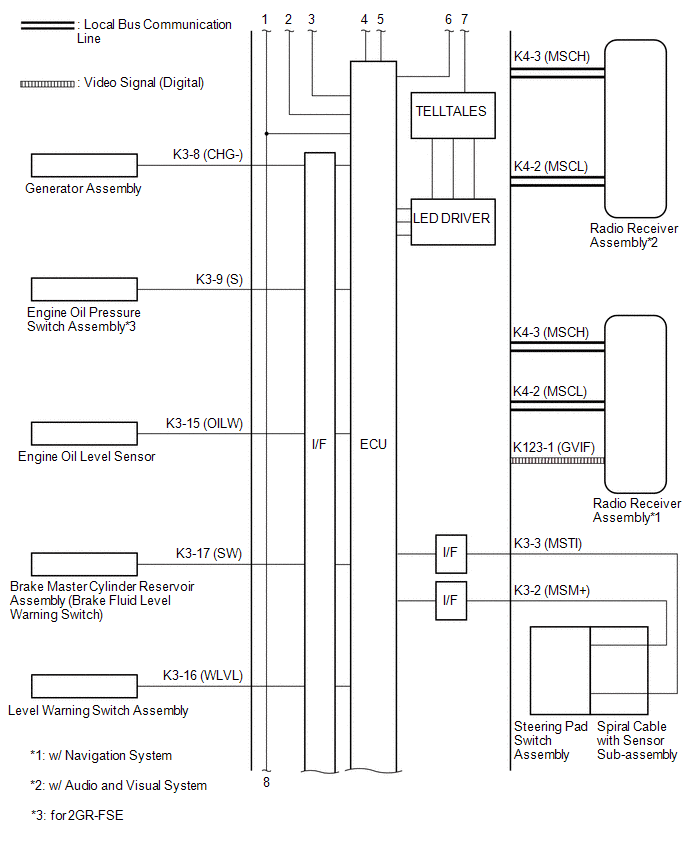

Fig 2: Meter / Gauge System Diagram (2 Of 3)
GTY665252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

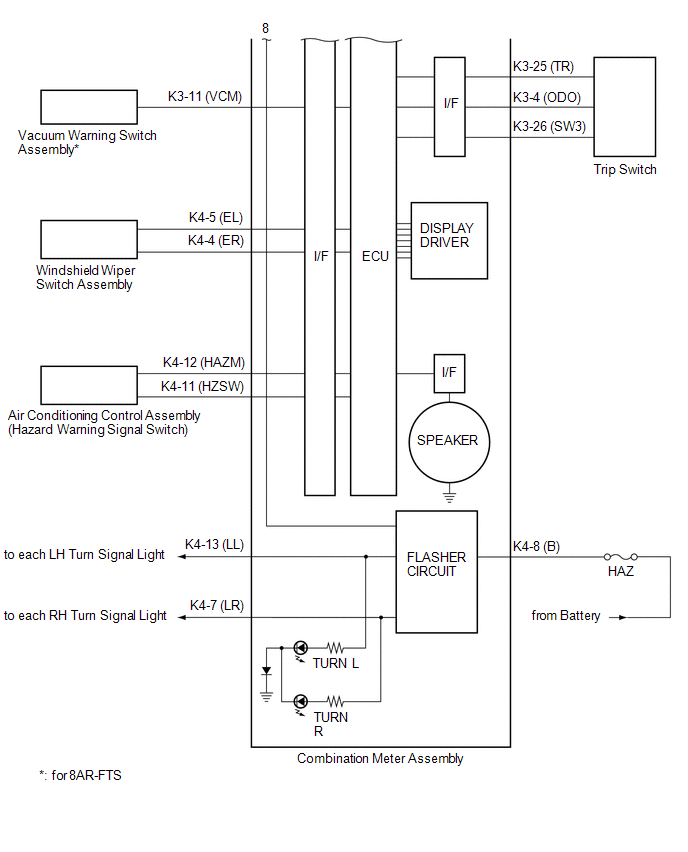

Fig 3: Meter / Gauge System Diagram (3 Of 3)
GTY655680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
