Can Communication System - Diagnostic Codes (3 Of 3) & Circuit Tests (1 Of 4)
>>
Can Communication System
>>
Steering Angle Sensor Communication Stop Mode [04/2013 - 10/2016]
>>

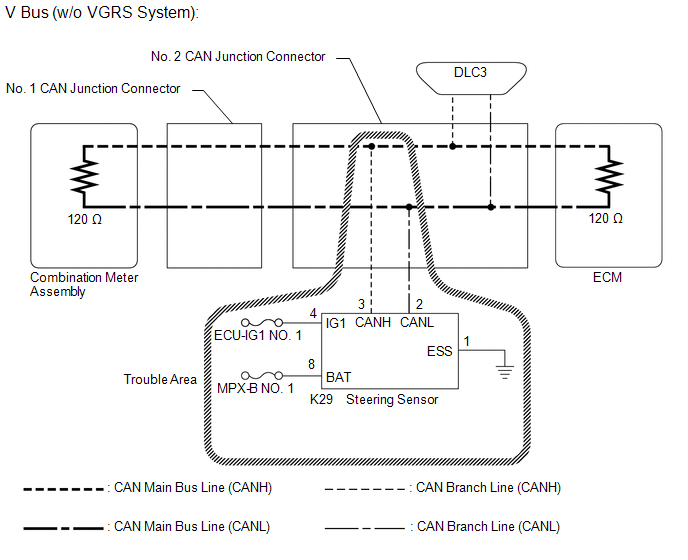

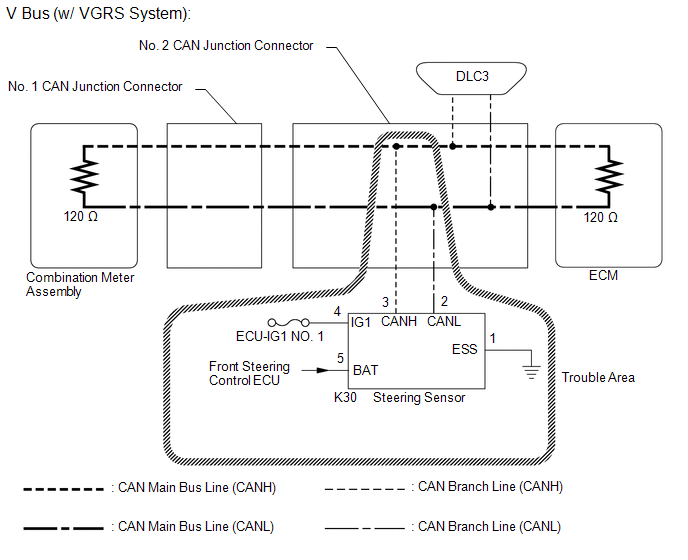

Wiring Diagram
Steering Angle Sensor Communication Stop Mode [04/2013 - 10/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
