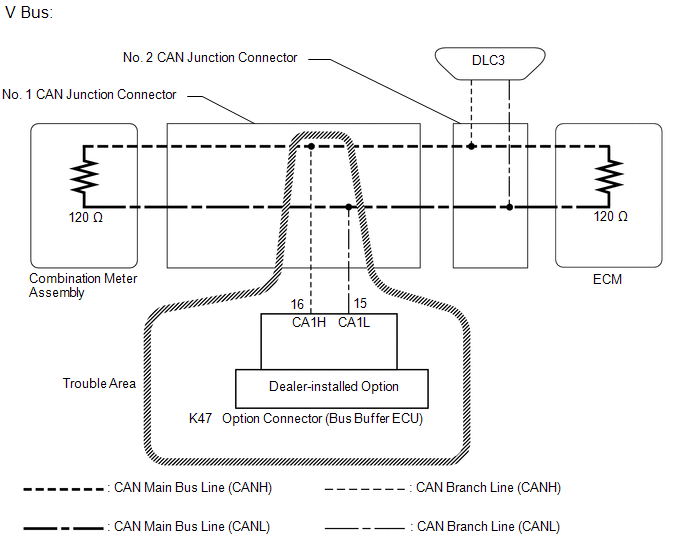

Bus Buffer ECU Communication Stop Mode [04/2013 - 10/2016]: Wiring Diagram

GTY461135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
