DTC B15DB: Telematics Transceiver Disconnected [06/2018 - 10/2019]: Procedure

  1. CHECK DTC
    1. Clear the DTCs.

      Body Electrical > Navigation System > Clear DTCs

    2. Turn the engine switch off.
    3. Turn the engine switch on (IG) and wait for 90 seconds.
    4. Recheck for DTCs and check that no DTCs are output.

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    NG

    See step  2

  2. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) POWER SOURCE)
    1. Disconnect the G10 DCM (telematics transceiver) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G10-4 (E) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      G10-1 (+B) - G10-4 (E) Always 11 to 14 V
      G10-8 (ACC) - G10-4 (E) Engine switch on (ACC) 11 to 14 V
      G10-7 (IG2) - G10-4 (E) Engine switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the G1 radio receiver assembly connector.
    2. Disconnect the G109 DCM (telematics transceiver) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G1-10 (USBV) - G109-5 (USBV) Always Below 1 Ω
      G1-11 (USBG) - G109-3 (USBG) Always Below 1 Ω
      G1-10 (USBV) or G109-5 (USBV) - Body ground Always 10 kΩ or higher
      G1-11 (USBG) or G109-3 (USBG) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. INSPECT RADIO RECEIVER ASSEMBLY
    1. Disconnect the G1 radio receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY823078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Radio Receiver Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      G1-11 (USBG) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      G1-10 (USBV) - G1-11 (USBG) Engine switch on (ACC) 4.75 to 5.25 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2020]

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) - NAVIGATION ECU)
    1. Disconnect the G109 DCM (telematics transceiver) connector.
    2. Disconnect the G108 navigation ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G109-2 (USB+) - G108-1 (USB+) Always Below 1 Ω
      G109-1 (USB-) - G108-2 (USB-) Always Below 1 Ω
      G109-6 (USBS) - G108-3 (USBS) Always Below 1 Ω
      G109-2 (USB+) or G108-1 (USB+) - Body ground Always 10 kΩ or higher
      G109-1 (USB-) or G108-2 (USB-) - Body ground Always 10 kΩ or higher
      G109-6 (USBS) or G108-3 (USBS) - Body ground Always 10 kΩ or higher

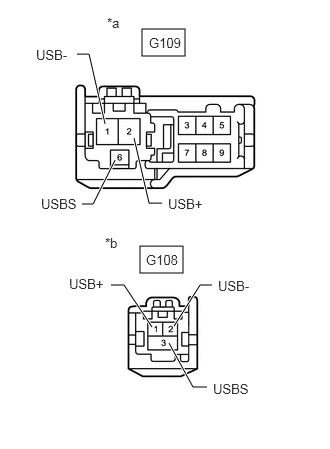

      GTY824718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to DCM (telematics transceiver))
      *b Front view of wire harness connector
      (to Navigation ECU)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. CHECK DCM (TELEMATICS TRANSCEIVER)
    1. Replace the DCM (telematics transceiver) with a new one.

      Refer to REMOVAL [06/2018 - 10/2019]

    2. Clear the DTCs.

      Body Electrical > Navigation System > Clear DTCs

    3. Turn the engine switch off.
    4. Turn the engine switch on (IG) and wait for 90 seconds.
    5. Recheck for DTCs and check that no DTCs are output.

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END

    Result:

    NG

    See step  7

  7. CHECK NAVIGATION ECU
    1. Replace the navigation ECU with a new one.

      Refer to REMOVAL [06/2018 - 08/2020]

    2. Clear the DTCs.

      Body Electrical > Navigation System > Clear DTCs

    3. Turn the engine switch off.
    4. Turn the engine switch on (IG) and wait for 90 seconds.
    5. Recheck for DTCs and check that no DTCs are output.

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (NAVIGATION ECU IS DEFECTIVE)

    Result:

    NG

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2020]
