Removal [09/2022 - ]: Procedure

  1. PRECAUTION

    for 8 inch display: Refer to PRECAUTION [09/2022 - ]

    for 12.3 inch display: Refer to PRECAUTION [09/2022 - ]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 1

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 2

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for UA80E:

    Refer to PROCEDURE - Step 1

    for P710:

    Refer to PROCEDURE - Step 1

    for UB80F:

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  8. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 17

  9. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 4

  10. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 5

  11. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 6

  12. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 22

  13. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  14. REMOVE LOWER INSTRUMENT PANEL LH

    Refer to PROCEDURE - Step 25

  15. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  16. REMOVE RADIO RECEIVER ASSEMBLY WITH SWITCH

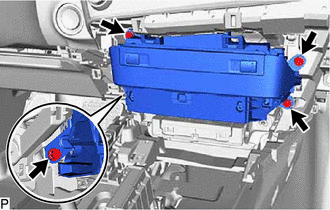

    1. Remove the 4 bolts.
      GTY1135990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

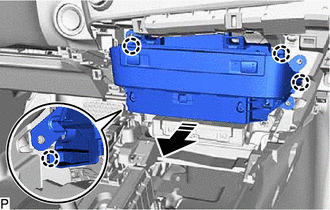

    2. Pull the radio receiver assembly with switch to disengage the 4 claws.
      GTY1137577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the radio receiver assembly with switch.
  17. REMOVE REFRESHING SEAT SWITCH

    Refer to PROCEDURE - Step 2

  18. REMOVE RADIO RECEIVER ASSEMBLY
  19. REMOVE NO. 1 RADIO BRACKET

    HINT:

    Perform this procedure only when replacement of the No. 1 radio bracket is necessary.

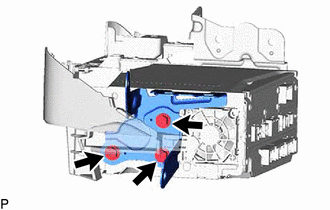

    1. Remove the 3 screws and No. 1 radio bracket.
      GTY1135998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 2 RADIO BRACKET

    HINT:

    Perform this procedure only when replacement of the No. 2 radio bracket is necessary.

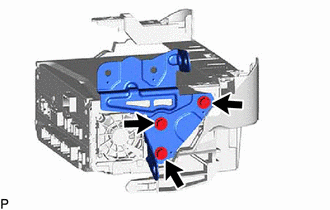

    1. Remove the 3 screws and No. 2 radio bracket.
      GTY1136000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
