Installation [06/2018 - 08/2021]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the 2 connectors.
    2. Engage the clamp.
    3. Install the combination meter assembly with the 4 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

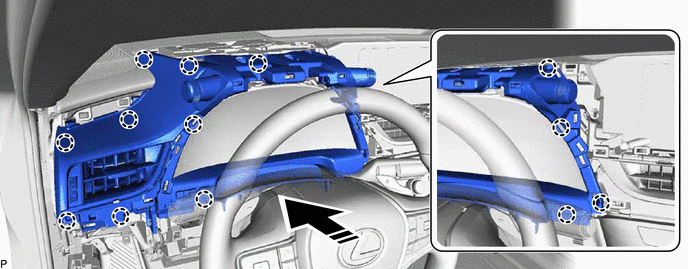

    1. Engage the 13 claws as shown in the illustration.
      GTY778790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    2. Install the 2 screws.
    3. Connect the connector.
    4. Engage the 2 guides and 4 clips as shown in the illustration to install the instrument cluster finish panel assembly.
      GTY816782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 18

  4. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  5. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Headup Display)

    Refer to PROCEDURE - Step 23

  6. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Headup Display)

    Refer to PROCEDURE - Step 24

  7. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING

    Refer to PROCEDURE - Step 25

  8. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  9. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 32

  10. INSTALL FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  11. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  12. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  13. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING

    Refer to PROCEDURE - Step 38

  14. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39

  15. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 40

  16. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 41

  17. INSTALL FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 31

  18. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 32

  19. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 33

  20. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 17
